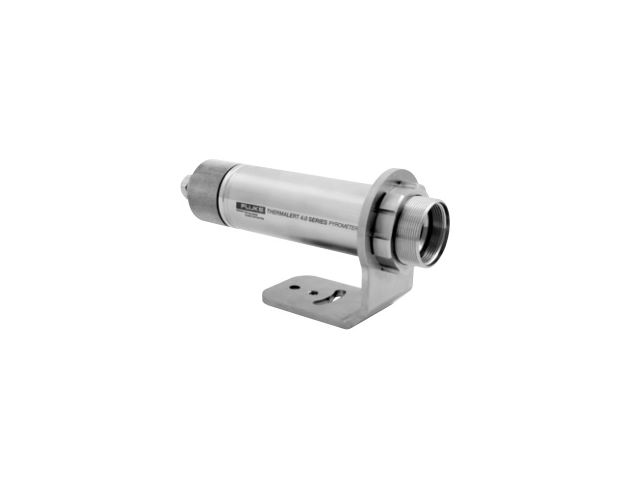

Thermalert 4.0 Infrared Pyrometer

Pyrometers

Ask for a quote

Presentation

Thermalert 4.0 infrared temperature sensors provide accurate temperature measurement from -40 °C to 2250 °C (-40 °F to 4082 °F) for a wide variety of process control applications.
• Durable stainless steel IP65 / NEMA4 enclosures designed to withstand ambient temperatures from -20 °C to 85 °C (-4 °F to 185 °F)
• Integrated laser sighting
• Galvanically insulated outputs
• Plastic lens option for food applications
• Analog input for ambient compensation and adjusting emissivity setting
• Multiple interfaces – 2-wire loop powered for analog and digital communication – 12 wires M16 and 6-pins terminal block for digital communication (RS485)
• USB for easy setup
• Simple, two-wire or digital installation
• Advanced signal processing
• Wide choice of focus distances
• 2-year guarantee

The program includes various models and accessories. The DataTemp® Multidrop software enables easy configuration and process monitoring on a real-time graphical display.

Technical features

Measured temperature range: -40°C to 2250°C (-40 to 4082°F, dependent on model) Ambient temperatures: -20 to 85°C (-4 to 185°F, with cooling up to 315°C/599°C) Spectral response: 8 to 14 µm; 7.9 µm; 5 µm; 3.9 µm; 3.43 µm; 2.2 µm Optical resolution: 7:1 to 70:1 (dependent on model) Response time: 30 ms to 150 ms (dependent on model) Interfaces: Analog (4..20 mA, 0/4..20 mA, 0..10 V, J/K thermocouple), USB, RS485, alarm output, trigger input Power supply: 12 to 24 VDC; 20 to 48 VDC, 100 mA (dependent on model) Environmental rating: IP65 / NEMA-4
