Raytek MI3 Miniature OEM Infrared Sensors and Communications

Pyrometers

Ask for a quote

Presentation

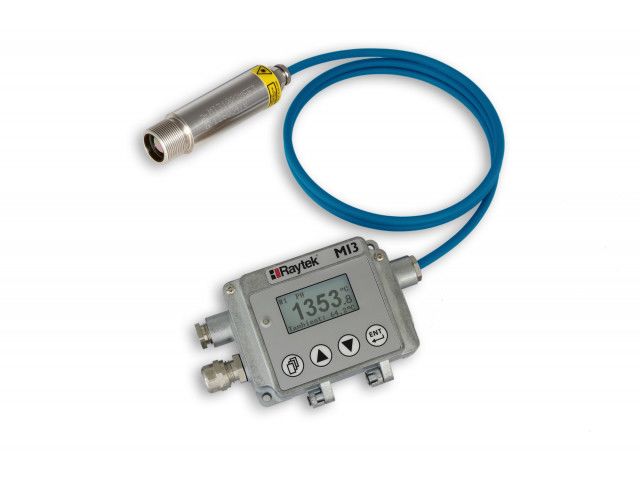

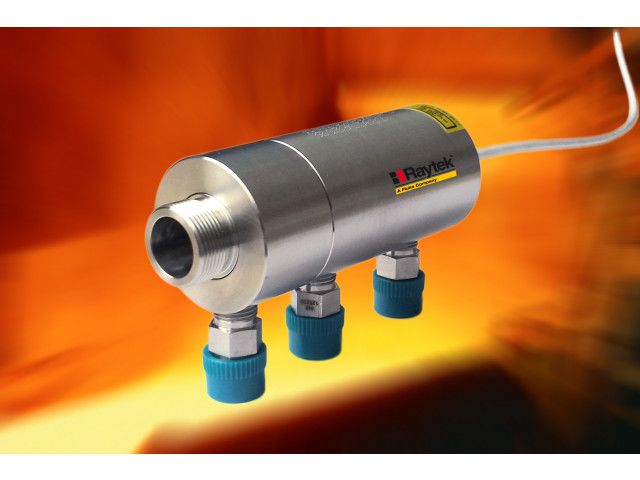

The Raytek MI3 infrared temperature thermometer is a two-piece system with a miniature sensing head and separate communications electronics. The OEM version allows direct digital communication with the host machine controller without the need for an additional communication box.
The innovative multiple sensing head interface, which can support up to 8 individually addressable heads per communication box, reduces sensor cost, simplifies sensor installation and applications troubleshooting, and provides the lowest cost per measurement point.

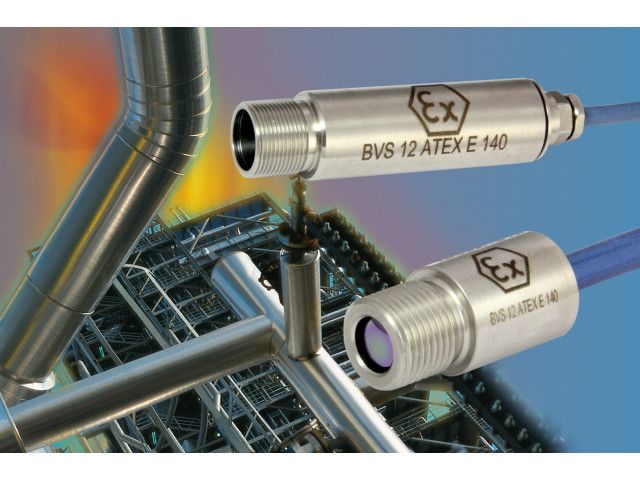

Raytek MI3 ATEX/IECEx certified sensors can be used safely to monitor the right temperature of hazardous areas / processes with explosive atmospheres. All standard MI3 and MI3100 heads can be ordered with optional ATEX/IECEx certification. One specifically provided Ex-proof power supply can be used with 2 sensing heads.

Technical features

Measured temperature range: -40 – 1.800°C (dependent on model) Optical resolution: Up to 100:1 Ambient temperatures: -10°C – 180°C (dependent on model) Environmental rating: IP65 Spectral response (Raytek MI3 LTS, LTH, LTF): 8 to 14 μm Spectral response (Raytek MI3 G5 – glass): 5 μm Spectral response (Raytek MI3 1M, 2M): 1 μm, 1.6 μm Accuracy: From ±0.5 % or 1 °C Response time: From 10 ms Power supply communications box: 8 bis 32 VDC, 5 W
