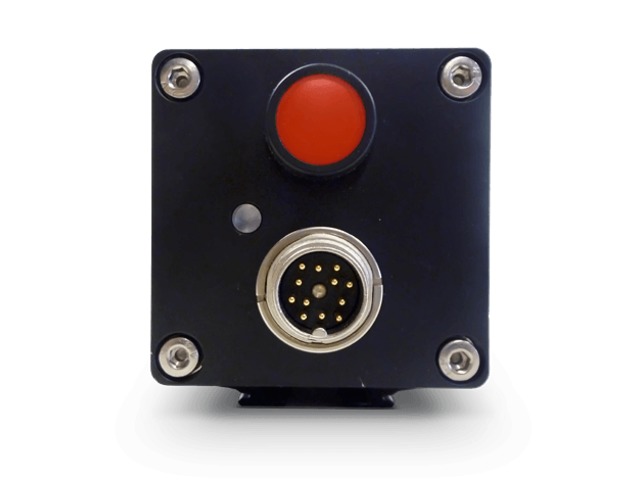

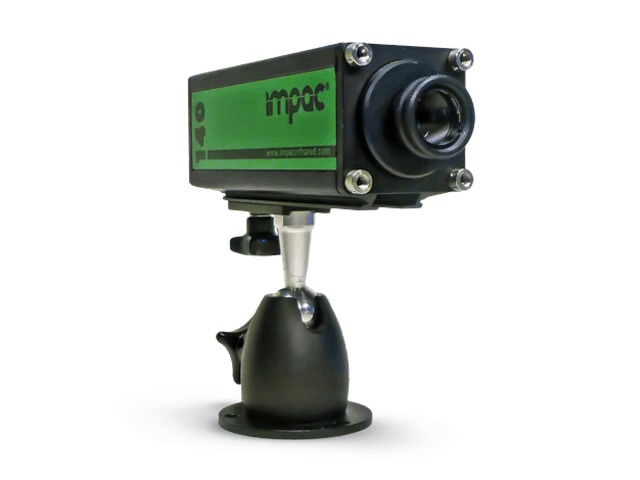

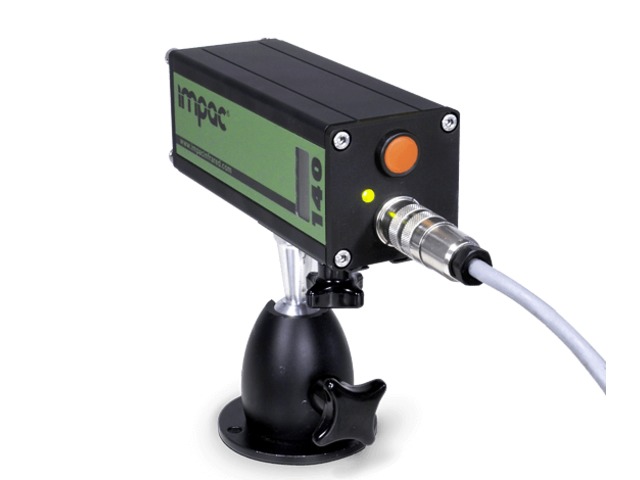

IMPAC Pyrometer IS 140

Pyrometers

Ask for a quote Receive Documentation Contact the supplier

Highly accurate, fully digital, fast Pyrometer with focusable optics for non-contact temperature measurements on metals, ceramics, graphite etc. between 550 and 3500 °C.

The pyrometers IS 140 is a digital, highly accurate pyrometer for non-contact temperature measurement on metals, ceramics, graphite etc.

The pyrometer is equipped with RS232 and RS485 serial interfaces (switchable inside the pyrometer). This enables additionally the reading of temperature and pyrometer parameters via the provided InfraWin PC-software. If necessary the parameters can be changed via PC.

For optimal match of the instrument to the application 3 different focusable optics with extremely small spot sizes are available.

The pyrometer parameters can be selected vie the integrated key pad, the settings are indicated on the built-in LC-Display. In measuring mode the actual temperature is indicated.

A laser targeting light, a thrulens view finder or a color camera module (for standard versions only) for exact alignment of the pyrometer is available.

The color camera module enables the optical alignment of the pyrometer to the measuring object via video screen or monitor.

Temperature ranges between 550 and 3500 °C Short response times < 1 ms optional 500 µs Extremely small spot sizes, min 0.35 mm Built in digital display with temperature indication Optimized thru-lens view finder, laser targeting light or video module Test current output Housing with precision mounting rail for safe mounting and accurate alignment Interface RS232 / RS485 switchable Focusable optics
Download the complete technical features

Sintering Melting Soldering Rolling Brazing
