Raytek EC150 Thermal Imaging System for Plastics Extrusion

Pyrometers

Ask for a quote

Presentation

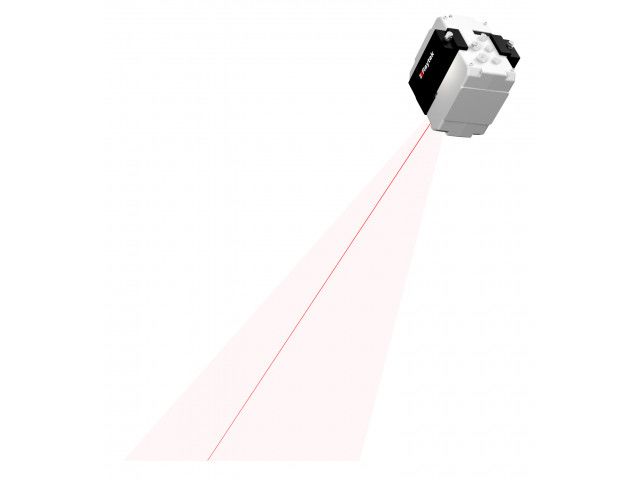

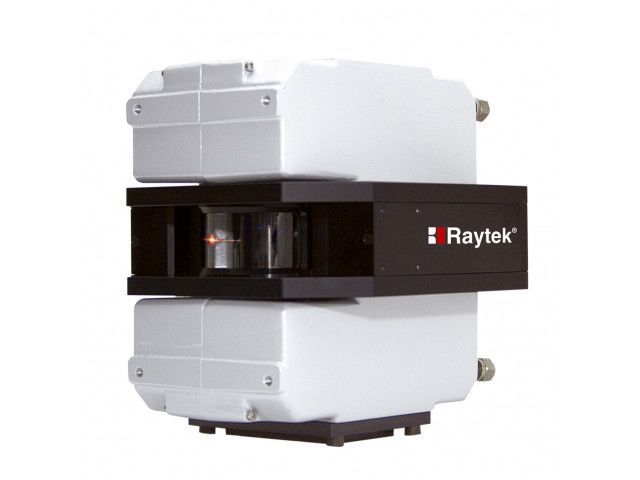

Thermal imaging system based on the Raytek MP150 infrared linescanner.
Detailed web temperature profile based on 40,000 measurement points per second
Automated temperature monitoring
Automated quality monitoring for ISO9000
Ensures proper web temperatures for strong film-to-substrate adhesion
Enables plant operators to reduce scrap and improve profitability and product quality
Quick and automatic detection of “wavy” or “running” edges, gaps, and torn edges
Define product-specific configurations (recipes)
Automatically analyze “automatic sector” temperature distributions
Visualisation on PC
Playback stored files as “movie”
Multiple language support
Integrated OPC server for remote system control
Ethernet TCP/IP interface integrated in the line scanning system
PC-independent alarm output
Analog outputs 3 x 4 – 20mA
Analog or digital output modules

For sheet extrusion see the Raytek ES150 system.

Technical features

Measured temperature range: 100 to 350°C (212 to 662°F) System accuracy: ±3°C (6°F) Repeatability ±1°C (2°F): ±1°C (2°F) Optical resolution: 225 :1 (50% energy) Ambient temperature: 0 to 50°C (32 to 122°F); with water cooling 180°C (356°F) Field of view: 90° Points per line: Up to 1024 Power supply: 24 VDC ± 25 %, 1 A Ethernet communication: TCP/IP Protokoll 10/100 Mbit/s Serial communication: RS485
