Raytek MP150 Infrared Linescanner Thermal Imaging System

Pyrometers

Ask for a quote

Presentation

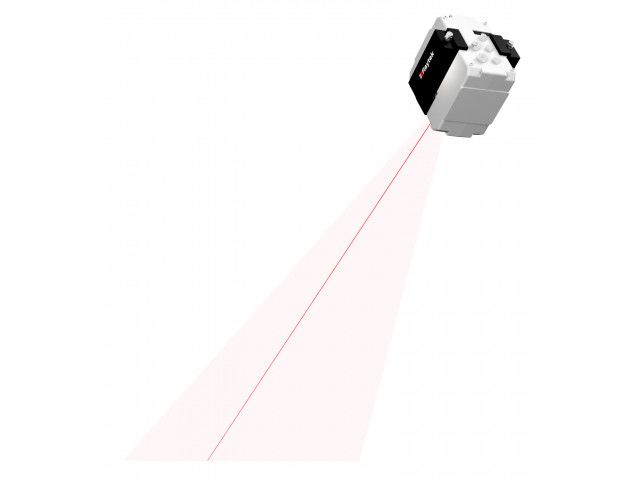

The Raytek MP150 infrared linescanner is designed for temperature monitoring in demanding industrial environments. It generates accurate thermal images of moving objects, scanning up to 90° wide fields of view with a motorized mirror at up to 1024 points per line and at a max. 150 Hz frequency. An internal high-speed microprocessor calculates the temperature of the individual measurement points.
- Real-time thermal line-scanner system for continuous or discrete process measurements
- Optical resolution up to 200:1
- Built-in line laser for rapid alignment
- On-board Ethernet TCP/IP communication
- Wide choice of models and spectral responses

The Raytek MP150 includes provision for air or water-cooling, three configurable analog outputs, and two-way digital communications.

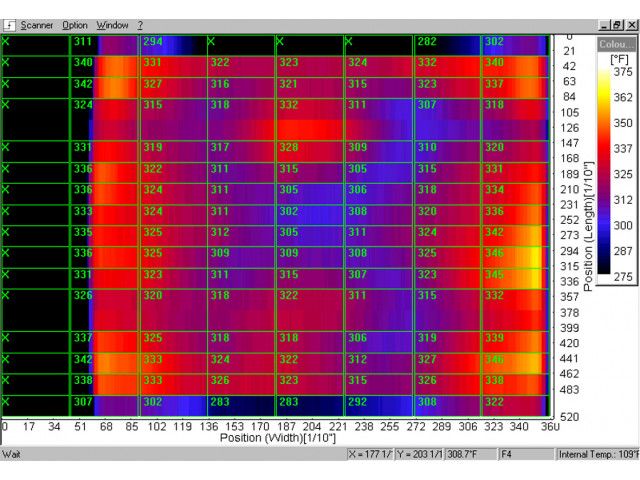

It can be used in standalone mode, connected to a single PC or integrated into a process control system using the Windows-based DataTemp DP software for remote configuration and real-time process monitoring.

Technical features

Measured temperature range: 20 °C...1200 °C (dependent on model) (up to 3000°C option on request) Spectral range: 1 µm...5 µm (dependent on model) Scan rate: Up to 150 lines per second Measurement points per line: Up to 1024 Optical resolution: Up to 200:1 Interfaces: Ethernet TCP/IP (100 Mbit/s), OPC, DDE, analog/digital output, RS485 Ingress protection: IP65 (NEMA4) (rugged enclosure with air-purge and built-in water cooling capability) Ambient temperature: Up to 180 °C Scanning angle: 90° Power supply: 24 VDC ± 25 %, 1 A
