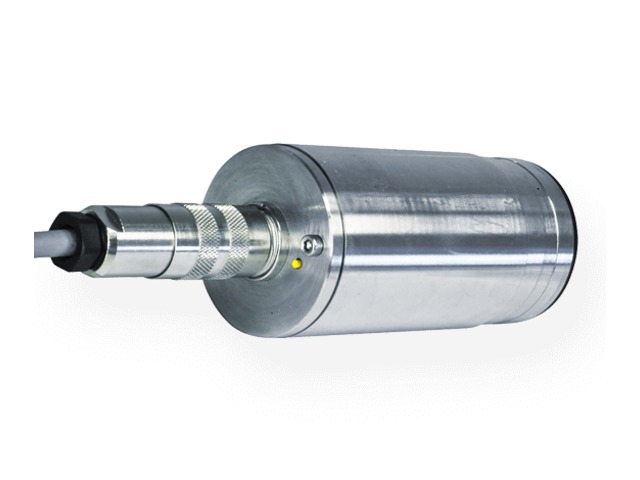

IMPAC Pyrometer IN 5/9 plus

Pyrometers

Case series with universal possibility of use.• 12 different basic dimensions with at least 2 heights.• for desk top and wall mounted use.• available in ABS and polycarbonate for some versions.•...

Ask for a quote

Presentation

Digital pyrometer for non-contact temperature measurement of Sapphire and Sapphire Wafers between 0 and 1500 °C.

The IN 5/9 plus is specially designed for non-contact temperature measurements on Sapphire and Sapphire Wafers.

It is a digital instrument that is equipped with an analog output and a digital interface enabling temperature indication and storage on a PC.

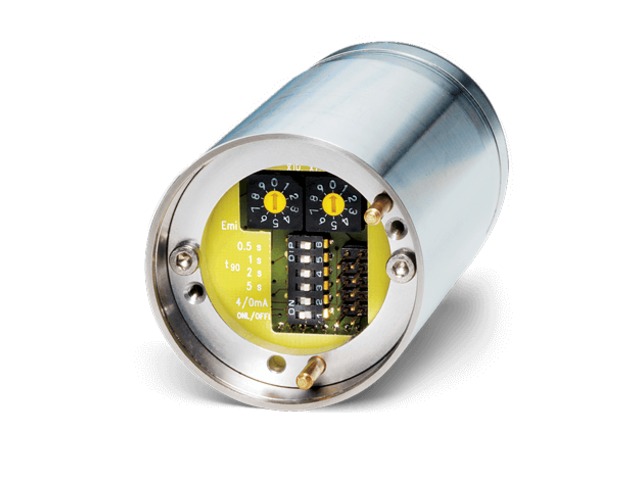

A temperature sub range can also be configured and the instrument parameters can be adjusted remotely.

For optimal match of the instrument to the application (size of the measuring object, distance) different optics are available.

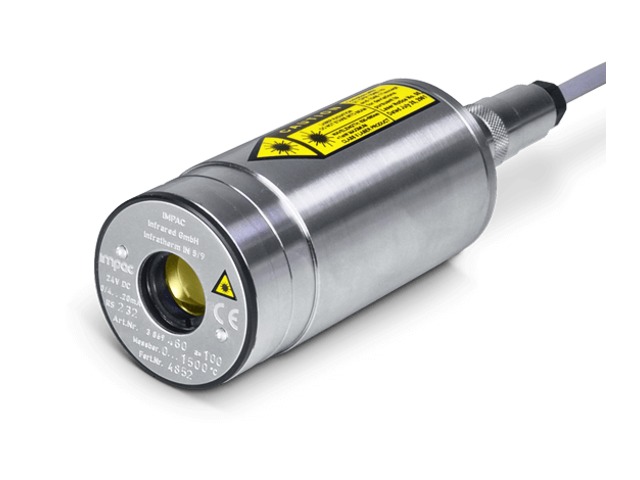

For a precise alignment of the pyrometer to the measuring object, the instrument is equipped with a laser targeting light.

Technical features

Temperature Range : 0 to 1500 °C Sub Range : Any range adjustable within the temperature range, minimum span 51 °C Spectral Ranges : 8 to 9.7 μm Optics : Zinc-Sulfide (ZnS) Resolution : 0.1 °C on interface; < 0.1% of temperature range at analog output Analog Output : adjustable 0 ... 20 mA or 4 ... 20 mA (linear) Load : max. 500 Ohm at 24 V (max. 200 Ohm at 18 V) Digital Interface : RS232 (RS485 on request) Power Supply : 24 V DC (18 ... 30V DC) nominal, ripple must be less than 0.5 V Power Consumption : Max. 70 mA
