Sensing element
Pt100 single element
with tolerance class B or A according to IEC 60751 (EN 60751)
Temperature range
Standard 0 to +400°C.
External sheath
AISI 316L seamless tube – wall thickness 1 mm
Diameter: 6 or 8 mm, other diameters available on request.
Length: standard 30 mm, other lengths on request.

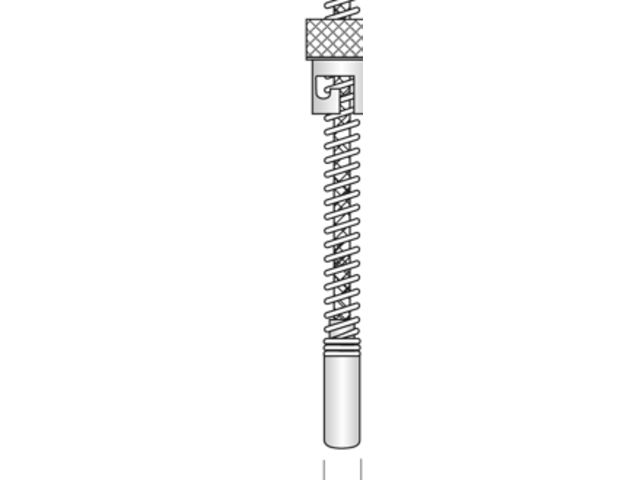

Hint: Insertion length and pressure onto the bottom of the well can be adjusted by turning the bayonet along the spring.
Bayonet fitting for double lug
Either 12 or 15 mm internal diameter

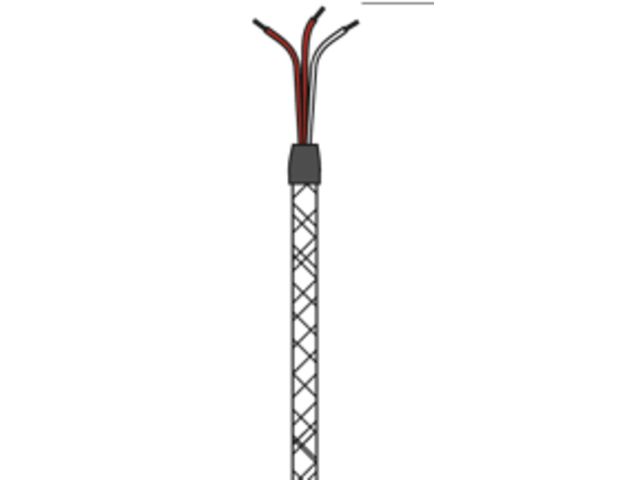

Wiring
Glass fibre cable with stainless steel overbraid
3- or 2-wire construction
Cable length: 1 meter, other lengths available in option
Remarks
This probe is also available with a thermocouple sensing element instead of a Pt 100.
See further our data sheet TI1112.
APPLICATIONS
Machines as extruders, plastic molding and plastic film machines
