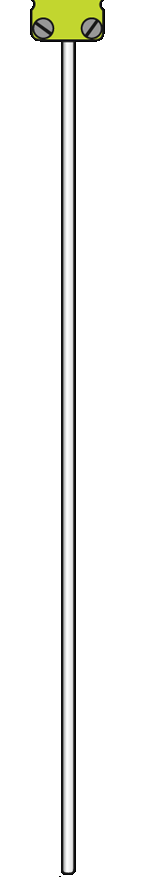

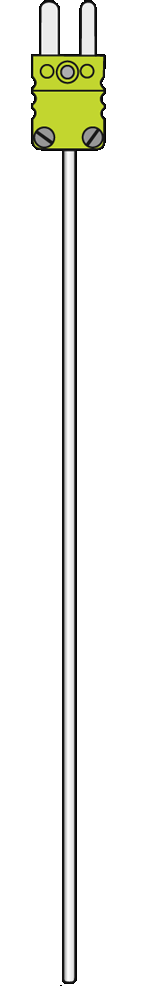

Sheathed thermocouple with mini connector

Temperature probe

Ask for a quote Receive Documentation Contact the supplier

The most versatile model of thermocouple: Insertion probe, long reach high temperature sensor, Laboratory vessels, heating plates, Difficult installations with curves, bends or loops, Ovens, incubators, Temporary measuring device for plant efficiency assessment.

Sensing element

Thermocouple type K, N, J, T, E. Tolerance class 1 according to IEC 584 (EN 60584)

Temperature range

-200 to +1150 °C, depending on thermocouple type,sheath diameter and length

External sheath

AISI 316L or Inconel seamless semi-flexible sheath with mineral oxide filling.
Can be manufactured in very long lengths (virtually unlimited).
Can be bended with a radius equal to 3 times the sheath diameter.
Totally watertight.

Diameter

3 mm by default : 2 - 1,5 - 1 - 0,5 mm available on request
Hint: make sure that the thermocouple sheath is long enough to prevent connector insulation material from melting.

Length

300 mm by default, other lengths on request, up to several tens of meters.
Hint: make sure that the thermocouple sheath is long enough to avoid smelting of the insulation material of the connector.

Process connection

None, but sliding connector available in option.

Wiring

2-wire (single) or 4-wire (double thermocouple)
