THERMIBEL S.A.

Measuring insert SI 9

Temperature probe

Ask for a quote Receive Documentation Contact the supplier

Replaceable measuring element for Thermibel series 6 and series 8 probes. Fits also any existing Pt100 element from other suppliers thanks to its standard dimensions.

Measuring element

"Pt100 single or duplex element. Pt1000 element available on request.
Tolerance class B, A or AA according to IEC 751 (EN 60751).
Protective shield: stainless steel.

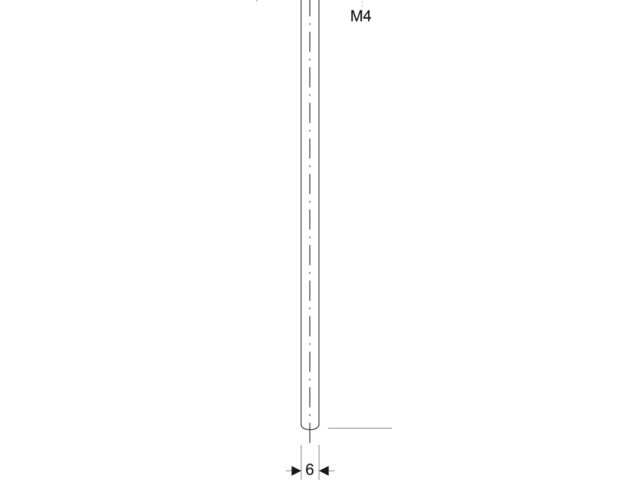

Diameter: standard 6 mm (4.5 and 8 mm also available)
Insertion length: Standard DIN lengths and any length in 5 mm increment."

Temperature range

Standard -200 to 600°C.

Head connection

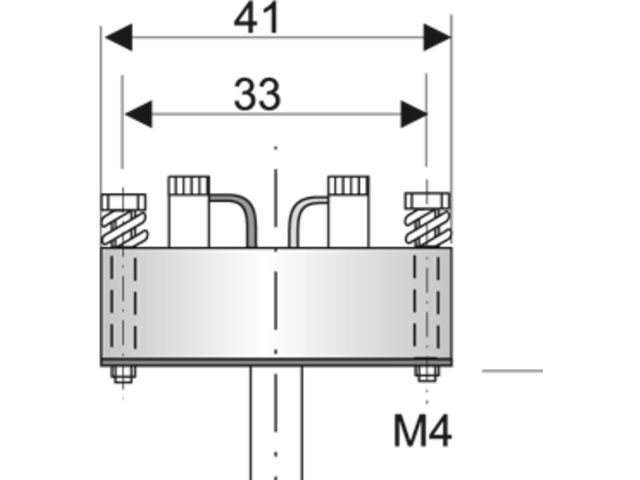

According to DIN43762 – M4 screws 33 mm spaced
Spring loaded mechanism for better contact with the bottom of thermowell or absorption of vibrations.

Electrical connections

"Standard ceramic terminal block 1x3-wire 1x2, 1x4, 2x2, 2x3-wire connection available on request"

Applications

Measuring inserts for series 6 and 8

OTHER PRODUCTS TEMPERATURE PROBE FROM THERMIBEL S.A.

screw-in probes with sheathed, non-replaceable sensing element and connection head Series SC-TB

screw-in probes with sheathed, non-replaceable sensing element and connection head Series SC-TB

 Ask for a quote
RTD probes with bayonet cap and adjustable spring pressure SI1112 series

RTD probes with bayonet cap and adjustable spring pressure SI1112 series

 Ask for a quote
WELD-IN BARSTOCK THERMOWELL - STRAIGHT FORM

WELD-IN BARSTOCK THERMOWELL - STRAIGHT FORM

 Ask for a quote
Straight thermocouple with dual ceramic protective sheath : TAA - TSP and TPP Series

Straight thermocouple with dual ceramic protective sheath : TAA - TSP and TPP Series

 Ask for a quote

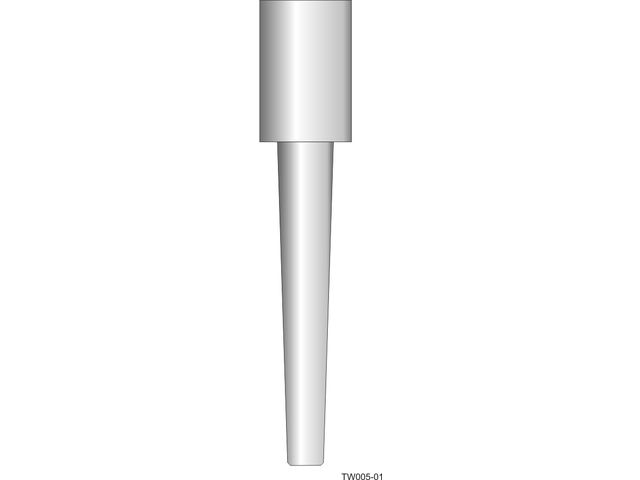

WELD-IN BARSTOCK THERMOWELL - TAPERED - TW005-01
