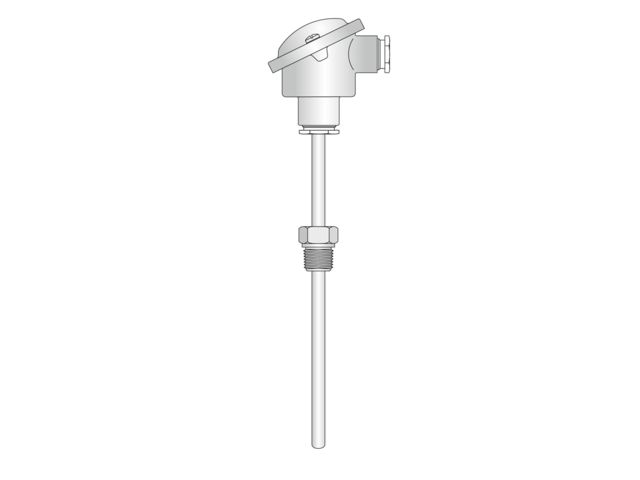

probe with process connector with extension tubes Straight Pt100 SI7-TI

Temperature probe

Ask for a quote

Presentation

Sensing element

Pt100 single or duplex
with tolerance class B, A or AA according to IEC 60751 (EN 60751)

Temperature range

-200 to + 600 °C

External sheath

AISI 316L seamless tube – wall thickness 1 mm
Diameter: 8 mm by default, other diameters available on request.
Insertion length: standard 160, 250, 400 mm,
any other length on request.

Hint: Insertion length
For cylindrical thread, the length L is measured WITH the thread.
For conical threads, the length L is measured
WITHOUT the thread

Process connection

Standard ½" BSPP-M
Other sizes or threads available on request.

Extension or lagging

Standard 145 mm, other lengths available on request

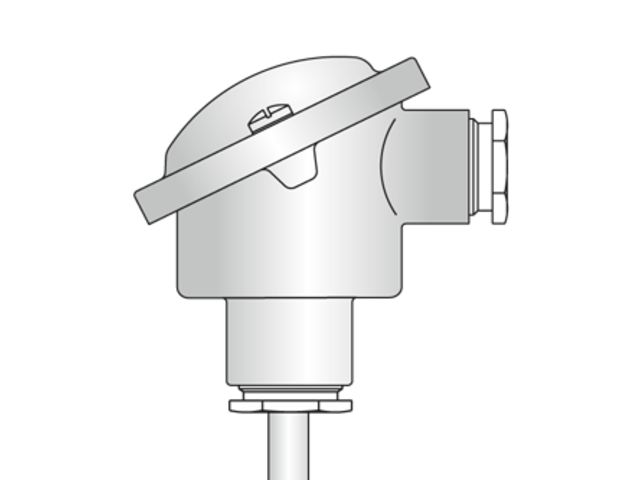

Connection head

Standard DIN type B head with M20 cable gland
(other types available on request).

Wiring

Standard ceramic terminal block 1 x 3-wire connection.
(1 x 2, 1 x 4, 2 x 2, 2 x 3-wire connection available on request)

APPLICATIONS

General purpose measurement probe for gaseous and liquid media – all industry domains.
