SENSING ELEMENT
Thermocouple type K (Ni-Cr/Ni), N (Ni-Cr-Si/Ni-Si), R, (Pt-13%Rh/Pt), S (Pt-10% Rh/Pt) or B (Pt-30%Rh/Pt-6%Rh)
single or duplex with tolerance class according to IEC 60584 (EN 60584)
TEMPERATURE RANGE
-
Thermocouple K or N : 0 to 1100 °C
-
Thermocouple R or S : 0 to 1550 °C
-
Thermocouple B : 0 to 1700 °C

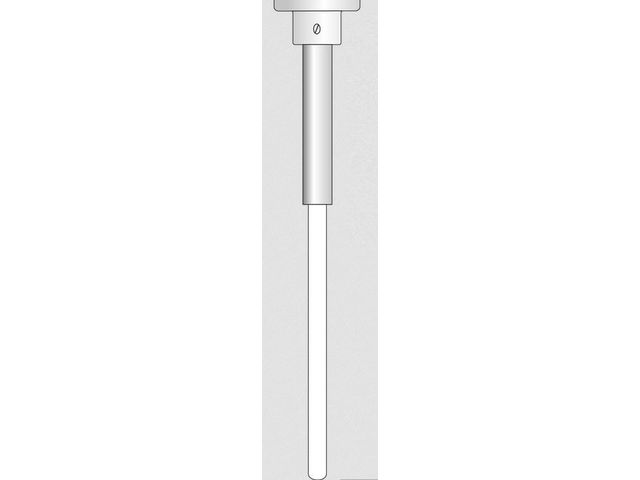

EXTERNAL SHEATH (EN60672)
-
KER610 (Pythagoras) up to 1400 °C
-
C799 (Alsint) up to 1700 °C
-
Diameter 10 mm
-
Cemented in stainless steel support tube
SUPPORT TUBE
Stainless steel, diameter 15 mm, length 80 mm
Insertion length: standard 180, 250, 355, 500 mm, any other length on request.
PROCESS CONNECTION
Sliding flange or steel sliding connector or welded process connection (either threaded of flanged)

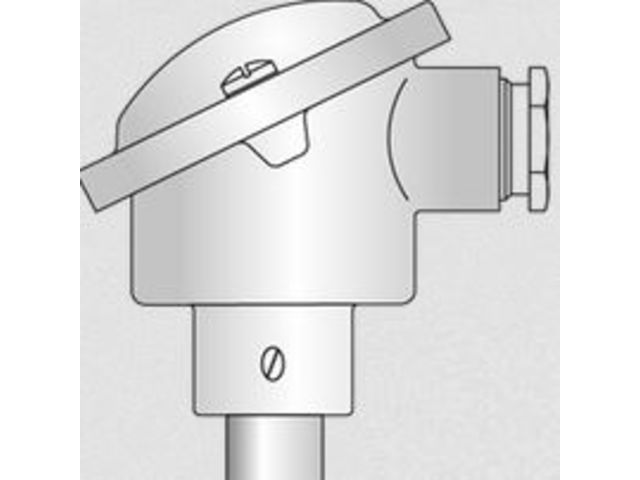

CONNECTION HEAD
Standard DIN type B head (other types available on request) with M20 cable gland.
