screw-in probes with sheathed, non-replaceable sensing element and connection head Series SC-TB
screw-in probes with sheathed, non-replaceable sensing element and connection head Series SC-TB - THERMIBEL S.A.
screw-in probes with sheathed, non-replaceable sensing element and connection head Series SC-TB - Temperature probe
Sensing element
Sheathed Pt100 single or duplex
with tolerance class B, A or AA according to IEC 751 (EN 60751)
Temperature range
-200 to + 600 °C
External sheath
AISI 316L, seamless semi-flexible sheath with mineral insulated oxide filling.
Can be manufactured in very long lengths (virtually unlimeted).
Can be bended with a radius equal to 3 times the sheath diameter.
Available diameters: 6mm by default, 3 - 4,5 and 8mm on request.

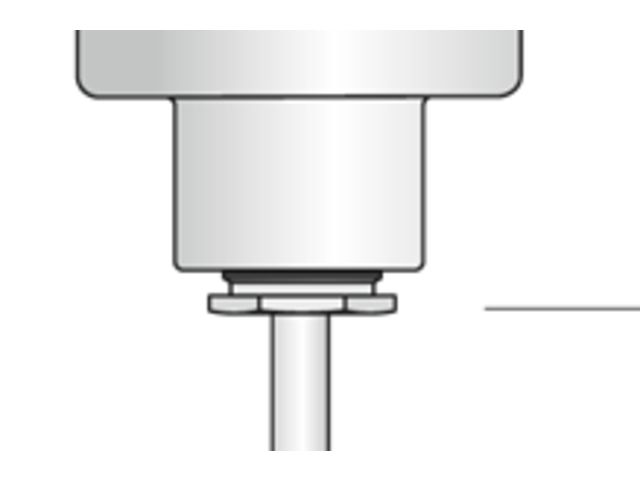

Process connection
None.
Sliding connector available in option for diameter 6 and 3 mm probes.

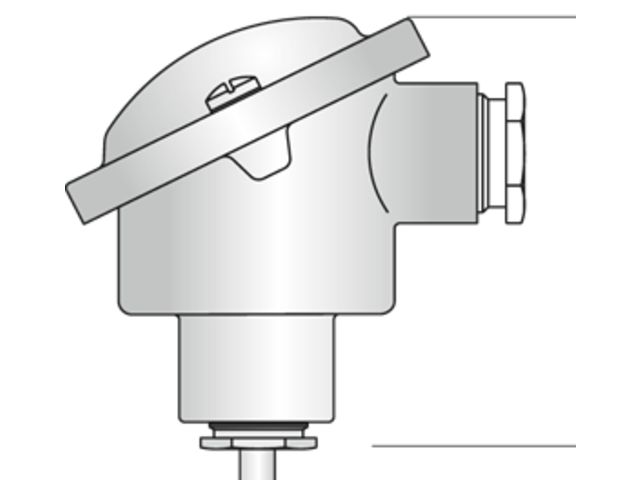

Connection head
Standard DIN type B head with M20 cable gland
(other types available on request).
Wiring
1 x 3-wire connection (1 x 4, 2 x 2, 2 x 3-wire connection available on request, depending on the sheath diameter)
APPLICATIONS
Alternative to standard probes at high temperature
Long reach probes or difficult installations with curves, bends or loops
When high mechanical resistance is required.
