Raytek ES150 Thermal Imager for Continuous Web Processes

Pyrometers

Ask for a quote

Presentation

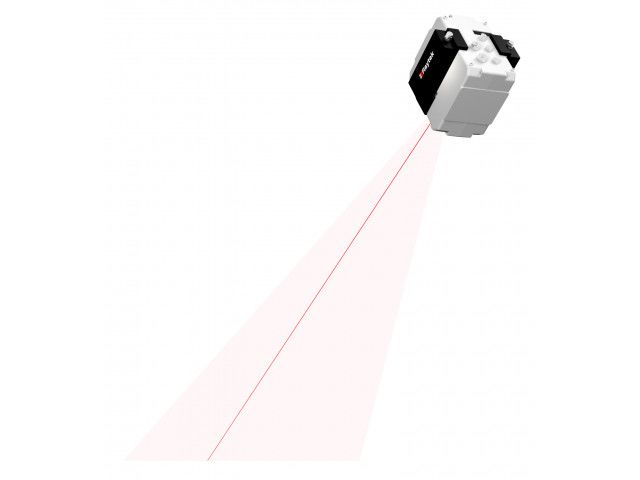

Thermal imaging system based on the Raytek MP150 infrared linescanner
Automatic temperature and quality monitoring in continuous web processes
Detect thermal problems early
Faster product changes and reduced setup time
Communicate with process control system via OPC
Reduce scrap

APPLICATIONS
Plastics, metals, paper, and building industries, combustion prevention, hotspot detection, flat and float glass production, automotive, food processing and numerous other industrial applications

FEATURES
Onboard Ethernet TCP/IP communication
Product specific configurations or “recipes”
Custom measurement sectors
Optional analog and digital outputs for each sector
Analog outputs 3 x 4 – 20mA
PC-independent alarm output
Visualisation on PC
Software supports English, German, French, Finnish, Dutch and Italian languages

Technical features

Optical resolution: Up to 200:1 (90% energy) Measured temperature range: 20 – 1,200 °C Field of vision: 90° Measurement points per line: Up to 1024 Line frequency: Up to 150 Hz Ambient temperature: 0 – 50°C (with water cooling up to 180°C) Interfaces: Ethernet TCP/IP (100 Mbit/s), OPC, DDE, analog/digital output, RS485
