Raytek Raynger 3i Plus Portable High-Temp IR Thermometer

Raytek Raynger 3i Plus Portable High-Temp IR Thermometer - Fluke Process Instruments GmbH

Raytek Raynger 3i Plus Portable High-Temp IR Thermometer - Pyrometers

Raytek Raynger 3i Plus Portable High-Temp IR Thermometer

Pyrometers

Ask for a quote

Presentation

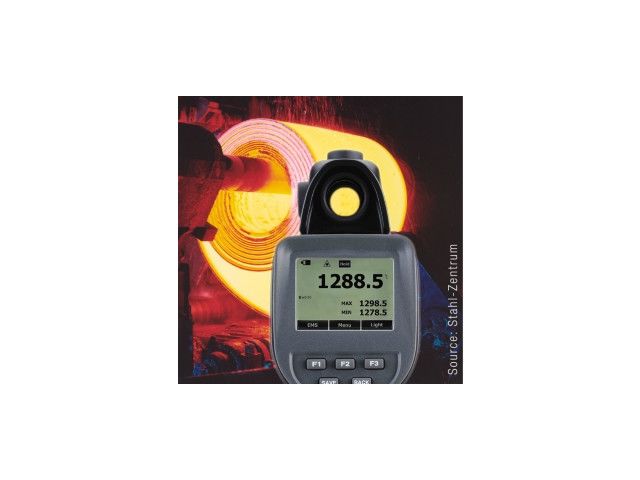

The Raytek Raynger 3i Plus handheld infrared thermometer is designed to meet process performance requirements in industrial applications, including highly demanding hot environments in primary and secondary metal processing, as well as petrochemical and power plant operations.
The rugged pyrometer withstands a 1m (3.2ft) drop test and provides a longer operational cycle for up to 24 hours when powered with rechargeable batteries.
Its intuitive user interface enables easy parameterization and ‘on-site’ display of data analysis and trending, as well as fast and easy data transfer to a PC or smartphone using USB or Bluetooth.
It features a high 250:1 optical resolution, which ensures accurate temperature readings at longer distances. Heat resistant “Red Nose” warning detector ensures operator safety and efficiency. Dual laser and scope sighting, visible even against "red hot" backgrounds, make this IR thermometer a perfect choice for hot temperatures applications.

Technical features

Measured temperature range: IM: 700 to 3000 ºC (1292 to 5432 ºF); 2M:400 to 2000 ºC (752 to 3632 ºF Accuracy: ±(0.5% of reading +1ºC) (<2700ºC/4892ºF) Spectral response: 1M: 1.0 μm, 2M: 1.6 μm Operating temperature: 0 to 50ºC (32 to 120ºF) Laser sighting: Yes Dual laser: Yes Exposure time: 40 ms Power: Single cell Lithium-ion, 3.6 V, 2500 mAh or via USB 2.0 Battery life (Lithium-ion): 24 hrs Digital outputs: USB 2.0, optional Bluetooth 4.0

Download the complete technical features
