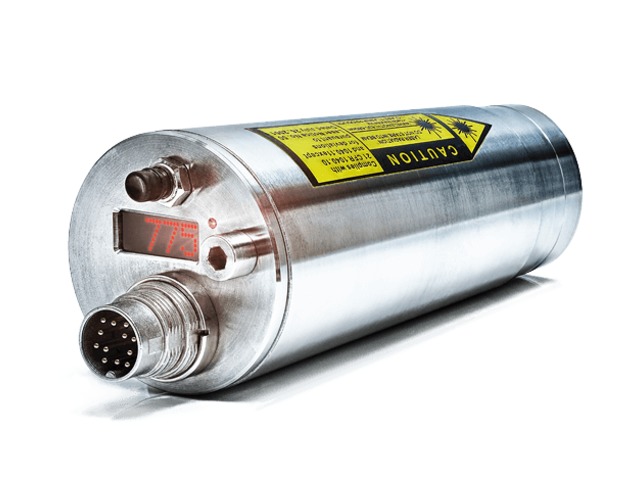

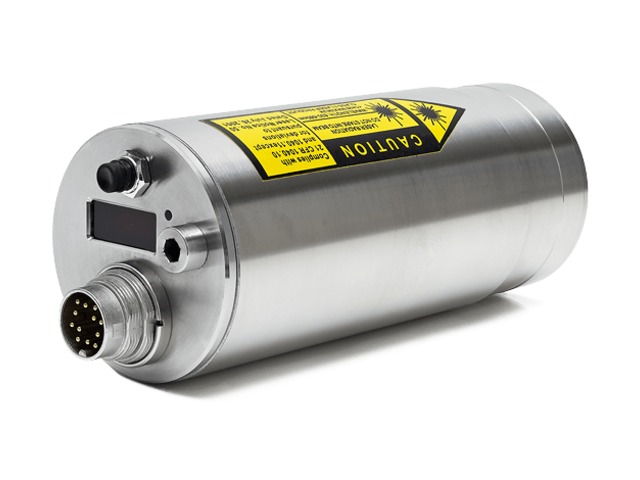

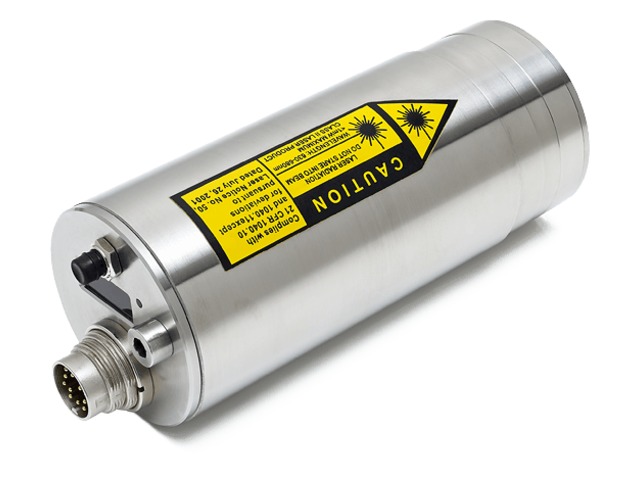

IMPAC Pyrometer IGA 6 Advanced

Pyrometers

Ask for a quote

Presentation

Stationary, digital pyrometer for non-contact temperature measurement in ranges between 250 and 2500 °C.

The pyrometer IGA 6 Advanced is a digital, compact, and fast infrared measuring instrument for non-contact temperature measurement on metals, ceramics, or graphite.

For a precise alignment of the pyrometer to the measuring object, the instrument is optionally equipped with a laser targeting light or a view finder.

The pyrometer can be connected to a PC through an RS485 to USB connection, enabling you to make parameter adjustments using the InfraWin software.

The software can be used for temperature indication, data logging, and further analyzing of complete temperature processes.

Technical features

Temperature Ranges : (MB 18) 250 to 1800 °C , MB 25) 250 to 2500 °C Sub Range : Any range adjustable within the temperature range, minimum span 50 °C Spectral Ranges : IGA: 1.45 to 1.8 μm Resolution : 0.1 °C or 0.2 °F at interface; < 0.0015% of adjusted temperature range at analog output, 16 bit; 1 °C or 1 °F on display Emissivity ε : 0.050 to 1.000 in steps of 1/1000 Transmittance τ : 0.050 to 1.000 in steps of 1/1000 Measurement Uncertainty : (ε = 1, t90 = 1 s, TAmb = 25 °C) 300...1500 °C: 0.3% of reading in °C + 2 °C > 1500 °C: 0.6% of reading in °C Repeatability : (ε = 1, t90 = 1 s, TAmb = 25 °C) > 300 °C: 0.15% of reading in °C + 1 °C Sighting : Built-in laser aiming light (max. power level < 1 mW, λ = 630 to 680 nm, CDRH class II) or through-lens sighting Distance Ratio : approx. 350 : 1
