Endurance High-Temperature Infrared Ratio Pyrometer

Endurance High-Temperature Infrared Ratio Pyrometer - Fluke Process Instruments GmbH

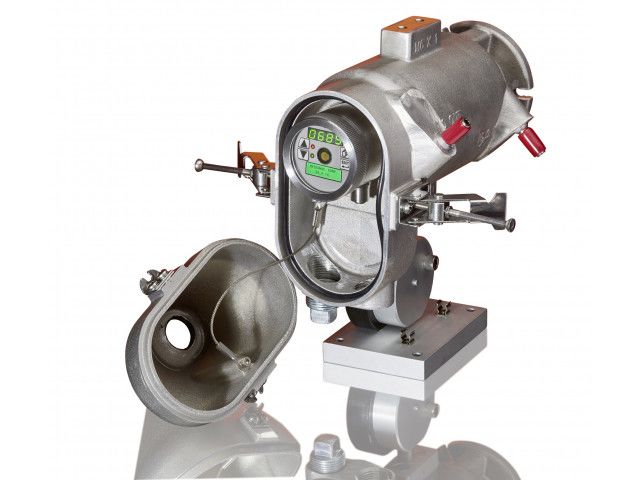

Endurance High-Temperature Infrared Ratio Pyrometer

Pyrometers

Ask for a quote

Presentation

Temperature range: 250 °C to 3200 °C
4-year warranty
Durable IP65 (NEMA4) housing

Manual Variable focus
Sighting options:
Laser through the lens and Visible through the lens
Video Camera through the lens and Visible through the lens
LED through the lens and Visible through the lens

LAN/Ethernet interface with PoE for sensor communication (ASCII, Video, and Webserver)
Profinet interface option
Programmable relay output
Fail-safe alarm
Isolated analog input/output
Rugged stainless-steel housing
Dirty-window alarm
Endurance software for remote configuration, remote monitoring and field calibration
Single or two color models available

APPLICATIONS
Metals processing: molten metal/forging, hot rolling mills, rod/wire mills
Heat treating & annealing
Induction heating
Lightbulb and halogen lamp production
Glass melting
Semiconductor furnaces
Cement & lime kilns
Refuse burning
Carbon graphite production
Foundry & welding
Rubber & thick plastic

Technical features

Measured temperature range: 250 – 3200 °C Ambient temperatures: Up to 65 °C; up to 315 °C (600 °F) with ThermoJacket enclosure Optical resolution: Up to 300:1 Ingress protection: IP65 (NEMA 4) Spectral response: 1.0 μm, 1.6 μm Accuracy: From ±0,5% / ±2 °C Resolution: 0.1 °C Response time: 10 ms, 20 ms (95%) Power supply: 20 – 48 VDC, 500 mA or Power over Ethernet (PoE) Digital outputs: Ethernet, Profinet

Download the complete technical features
