Raytek CS210 Rotary Kiln Monitoring System – Thermal Imager

Raytek CS210 Rotary Kiln Monitoring System – Thermal Imager - Fluke Process Instruments GmbH

Raytek CS210 Rotary Kiln Monitoring System – Thermal Imager - Pyrometers

Raytek CS210 Rotary Kiln Monitoring System – Thermal Imager - produit présenté par Fluke Process Instruments GmbH

Raytek CS210 Rotary Kiln Monitoring System – Thermal Imager

Pyrometers

Ask for a quote

Presentation

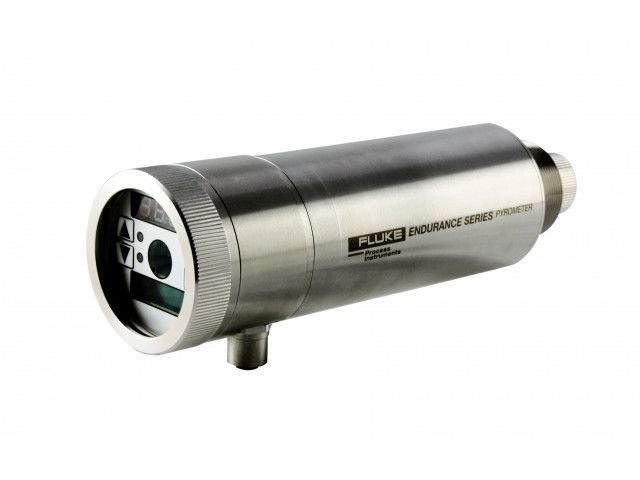

Kiln shell temperatures are monitored along the entire length of the kiln. The infrared line-scanning system detects kiln hot spots due to refractory loss, damage, or wear. Data from up to 4 scanners or individual point sensors (optionally used to monitor the burning zone and tire slips) can be seamlessly integrated into one complete thermal image.
Detect abnormal operating conditions such as faulty flame position and shape!
Optimize and manage kiln maintenance!
Extend the operational life of kiln and refractory!
Automated kiln and refractory monitoring
Visualisation on PC
Ethernet TCP/IP interface
PC-independent alarm output
Analog outputs 3 x 4 – 20mA

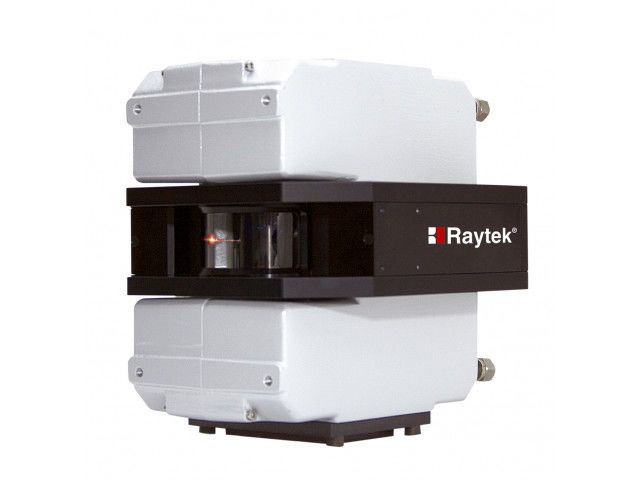

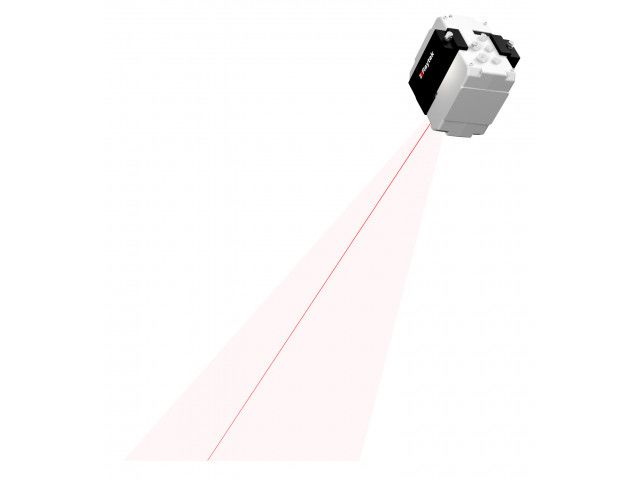

To ensure reliable operation in even the harshest kiln environments, the MP150 linescanner, which is used in the CS210 thermal imaging system system, is designed with a rugged cast aluminum housing and mounted in a robust stainless-steel enclosure.

Technical features

Measured temperature range: 100...650 °C (burning zone 700...1800 °C) Temperature resolution: 0.1 K Accuracy: ±0.5% of reading or ±3 °C Spot detection (50% of energy): 450 : 1 (2.2 mradians) Sampling rate: 1024 pixel per scan line (2048 for CS212) Ambient operating temperature: -40...45 °C (no direct sunlight) Ambient temperature - position indicator: -25 to 230 ºC Zone alarms: 48 software, 3 hardware (PC independant) Kiln rotation rate: Up to 10 rpm LRM accessory: Supports up to 6 tires

Download the complete technical features
