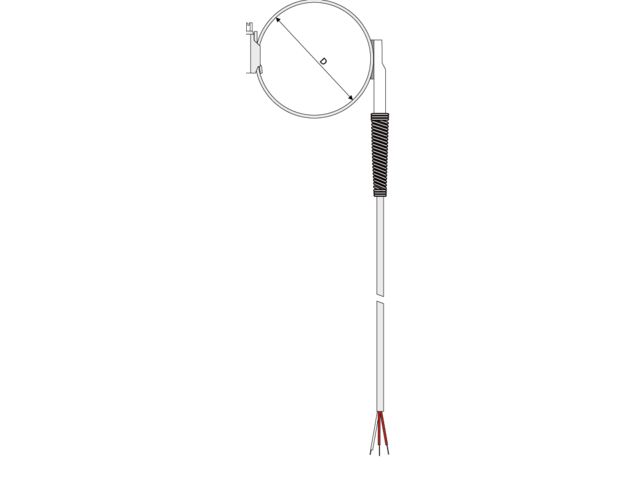

Surface Pt100 measuring probe for pipe temperature monitoring

Temperature probe

Ask for a quote Receive Documentation Contact the supplier

External sheath

"AISI 316L seamless tube Ø 6 mm
Length: standard 40 mm, other lengths on request.

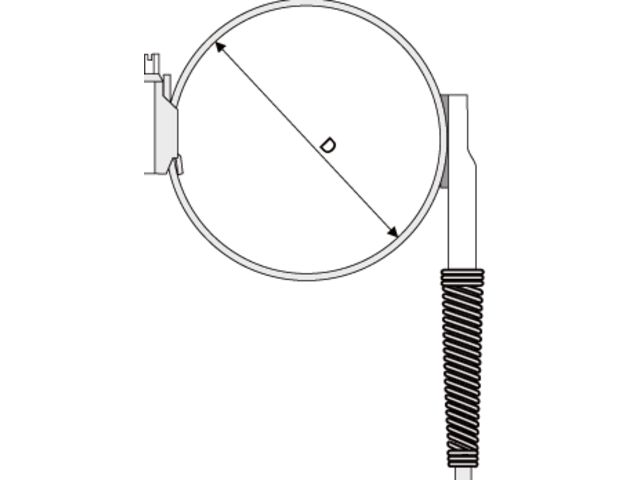

Fixing ring: standard 50 mm diameter
Other pipe diameters on request between 15 and 500 mm"

Remarks

This probe is also available with a thermocouple sensing element instead of a Pt 100.
See further our data sheet «TI contact thermocouple-pipes»

Sensing element

"Pt100 single element
with tolerance class B or A according to IEC 60751 (EN 60751)"

Temperature range

-100 to + 250 °C

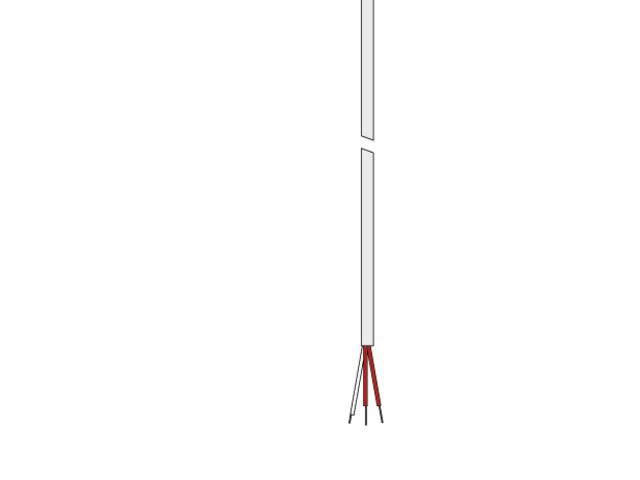

Wiring

"Teflon silicone cable as standard – other insulation
materials available on request
– see also our catalogue of Pt100/instrumentation cables 3- or 2-wire construction
Cable length: 3 meters, other lengths available in option"

APPLICATIONS

Low cost, easy to install pipe temperature monitoring.

OTHER PRODUCTS TEMPERATURE PROBE FROM THERMIBEL S.A.

Sheathed thermocouple with standard connector

Sheathed thermocouple with standard connector

 Ask for a quote
Barstock thermowell with sanitary fitting

Barstock thermowell with sanitary fitting

 Ask for a quote
Temperature probe with cable Series SC Sheath Pt 100

Temperature probe with cable Series SC Sheath Pt 100

 Ask for a quote
probe with process connector with extension tubes Straight Pt100 SI7-TI

probe with process connector with extension tubes Straight Pt100 SI7-TI

Ask for a quote
SCREW-IN BARSTOCK THERMOWELL - TAPERED - TW002-01

SCREW-IN BARSTOCK THERMOWELL - TAPERED - TW002-01

 Ask for a quote
Sheathed thermocouple with JAEGER® connector

Sheathed thermocouple with JAEGER® connector

 Ask for a quote

Check out all the products from temperature probe from THERMIBEL S.A.

INTERNET USERS ALSO CONSULTED ON THE CATEGORY TEMPERATURE PROBE

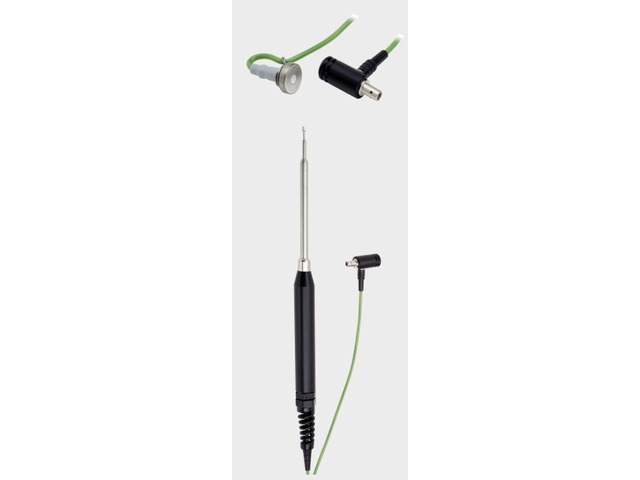

Standard temperature probe for PRÜFTECHNIK online CMS

Standard temperature probe for PRÜFTECHNIK online CMS

Ask for a quote

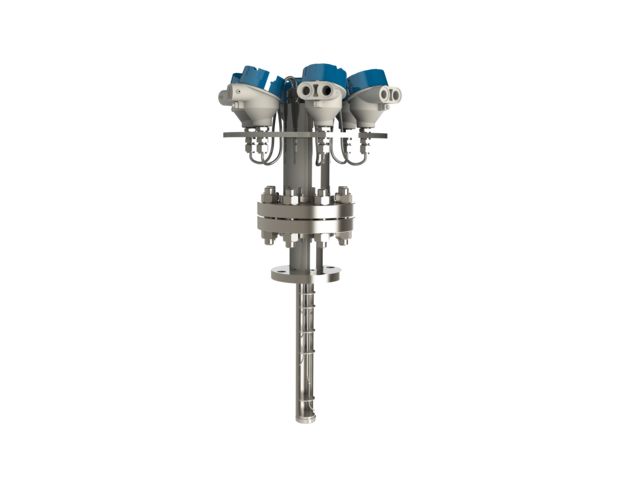

Multipoint thermocouples

Multipoint thermocouples

 Ask for a quote
K Thermocouple temperature probe with deformable sleeved contact tip with cable: SFKI

K Thermocouple temperature probe with deformable sleeved contact tip with cable: SFKI

 Ask for a quote

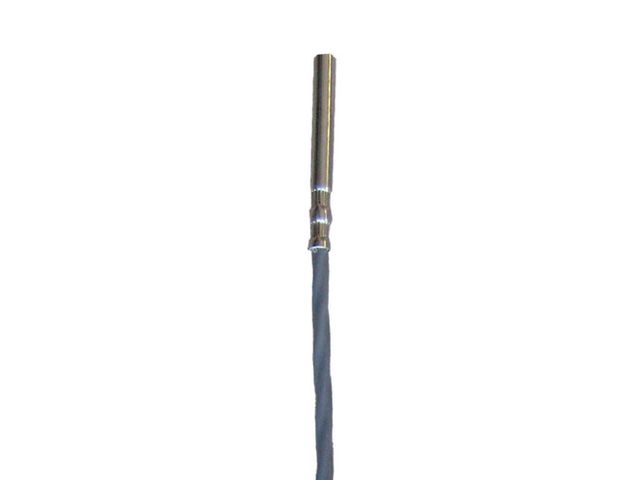

Temperature digital probe

Temperature digital probe

 Ask for a quote
RTD or thermocouple temperature probe | iTHERM ModuLine TM101

RTD or thermocouple temperature probe | iTHERM ModuLine TM101

 Ask for a quote

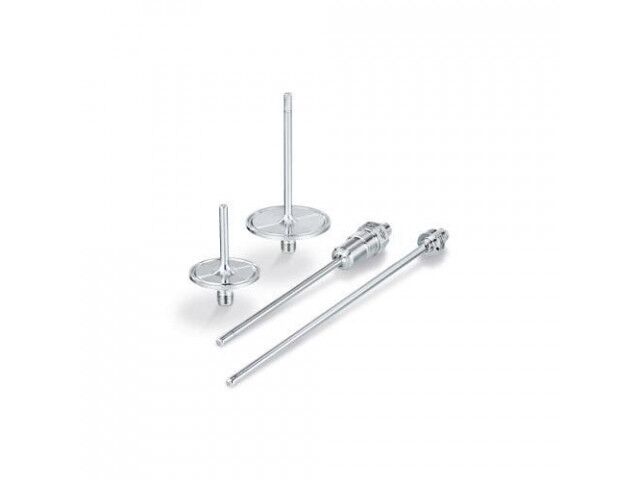

Temperature probe for hygienic applications TM4 TT
