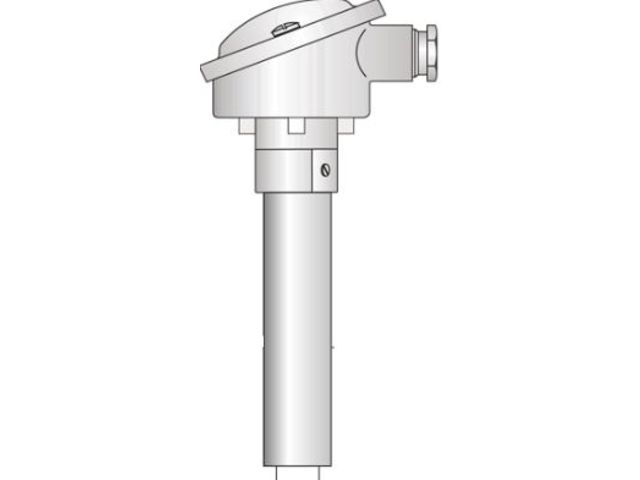

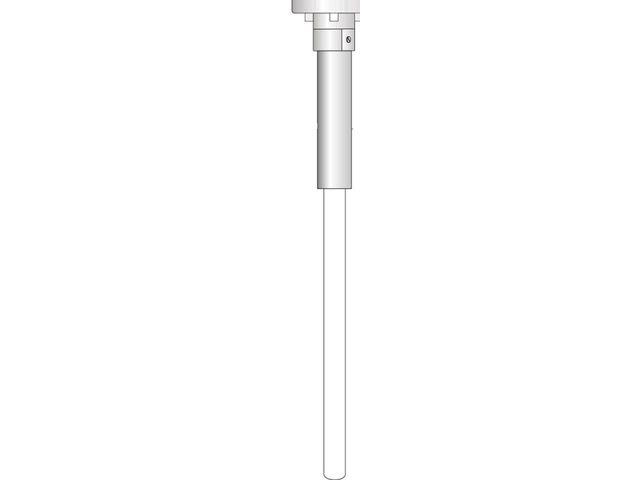

Straight thermocouple with dual ceramic protective sheath : TAA - TSP and TPP Series

Temperature probe

Ask for a quote

Presentation

Sensing element

Thermocouple type K (Ni-Cr/Ni), N (Ni-Cr-Si/Ni-Si), R, (Pt-13%Rh/Pt), S (Pt-10% Rh/Pt) or B (Pt-30%Rh/Pt-6%Rh)
Single or duplex
Tolerance class according to IEC 60584 (EN 60584)

Temperature range

Thermocouple K or N : 0 to 1100 °C
Thermocouple R or S : 0 to 1550 °C
Thermocouple B : 0 to 1700 °C"

Protection sheaths (EN 60672)

These double wall protection sheaths are offered in several combinations depending of the protection required and the temperature range.
C530 Sillimantin (external) and KER610 Pythagoras (internal) are best suited for use up to 1400 °C C530 Sillimantin (external) and C799 (Alsint) (internal) are best suited for use up to 1600 °C C799 (Alsint) both external and internal from 1600 up to 1700 °C.
In case strong corrosion issues, this combinaison may be chosen
for a lower temperature as well
Cemented in stainless steel support tube.

Support tube

Stainless steel or refractory steel – diameter 32 mm, length 200 mm

Insertion length

standard 500, 710, 1000, 1400 mm, any other length on request.
