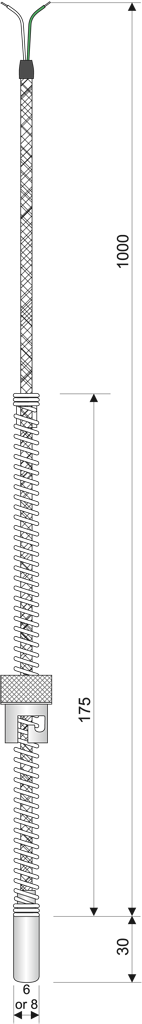

screw-in thermocouple TI1112

APPLICATIONS

Machines as extruders, plastic molding, hot inking and plastic film machines.

SENSING ELEMENT

Thermocouple type K or J with tolerance class 1 according to IEC 584 (EN 60584)

TEMPERATURE RANGE

Standard 0 to 400°C

EXTERNAL SHEATH

AISI 316L seamless tube – wall thickness 1 mm
Diameter: 6 or 8 mm, other diameters available on request.
Length: standard 30 mm, other lengths on request.

Hint: Insertion length and pressure onto the bottom of the well can be adjusted by turning the bayonet along the spring.

BAYONET FITTING

Either 12 or 15 mm internal diameter

WIRING

Glass fibre cable with stainless steel overbraid Cable length: 1 meter, other lengths available in option

REMARKS

This probe is also available with a Pt100 sensing element instead of a thermocouple.
See further our data sheet "SI1112".
