IMPAC Pyrometer IS 50-AL-LO plus

Pyrometers

Ask for a quote

Presentation

Pyrometer with fiber optics for non-contact measurements on aluminum parts and profiles with temperature ranges between 400 and 1000 °C.

The IS 50-AL-LO plus is a special version and customized to address specific applications and materials.

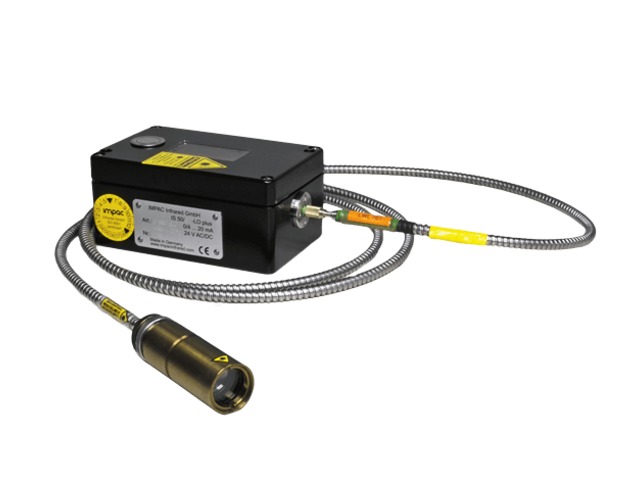

The instrument is equipped with a fiber and an exchangeable optical head. The fiber and optical head are unaffected by electromagnetical interferences (e.g. induction) and can be used in high ambient temperatures up to 250 °C.

Two different types of optical heads for different measuring distances and very small spot sizes are available. A laser targeting light enables the exact alignment onto the measuring object.

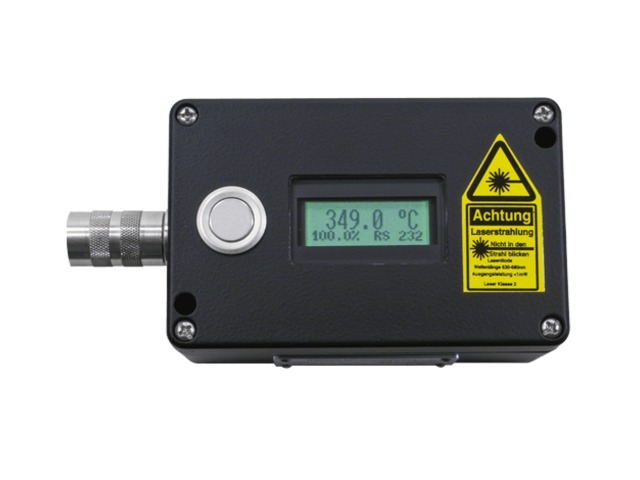

The very short response time of below 1 ms facilitates the measurement of fastest heating processes. The pyrometer is equipped with a display which shows in measuring mode the current temperature. Additionally all parameters can be read if they are changed via the integrated keys at the instrument.

Via serial interface and the provided software InfraWin the temperature can be displayed and stored on a PC, parameterizing can also be done.

Technical features

Very short response time below 1 ms Extremely short spot sizes, min. 1.1 mm Built-in LC display Laser targeting light Parameter adjustments via integrated key pad or interface Interface RS232 / RS485 switchable Test current output

Download the complete technical features
