Omnicure LX500 Controller

UV lamp

“ - Proprietary Intelli-Lamp® technology - Optical stability +/- 5% - Available in either 2 or 4 channel - Different wavelengths : 365nm, 385nm and 400nm ”

Ask for a quote

Presentation

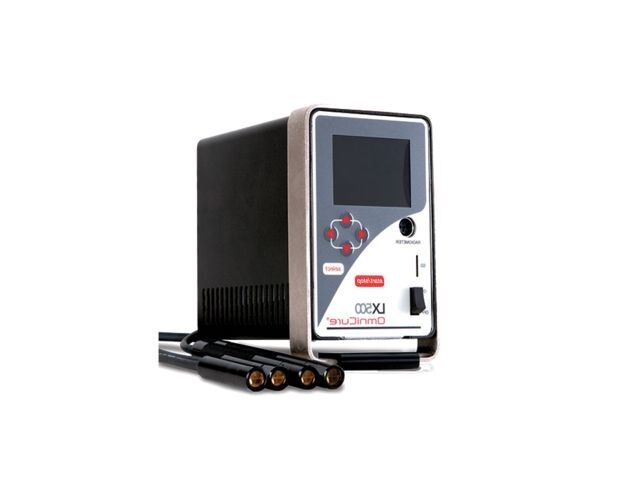

Utilizing advanced UV LED technology, the OmniCure LX500 spot curing system has been uniquely designed with proprietary Intelli-Lamp^®technology that monitors LED head temperature, lifetime data, and automatically maintains optical stability +/- 5% to provide greater degree of process assurance for your application. Available in either 2 or 4 channel configurations, the OmniCure LX500 is the most flexible and cost effective option for industrial manufacturing.
The OmniCure LX500 system controller offers a robust and intuitive user interface with the ability to control up to four UV LED spot curing heads simultaneously or independently at different wavelengths: 365nm, 385nm and 400nm. For long term stability of the light source, the New LED heads can be calibrated to tight tolerances to ensure a repeatable curing process and precise control of the UV irradiance. The LX500 features StepCure^® 2.0 which allows the operator to program different profiles within a single LED Head or multiple LED Heads across each channel.

Technical features

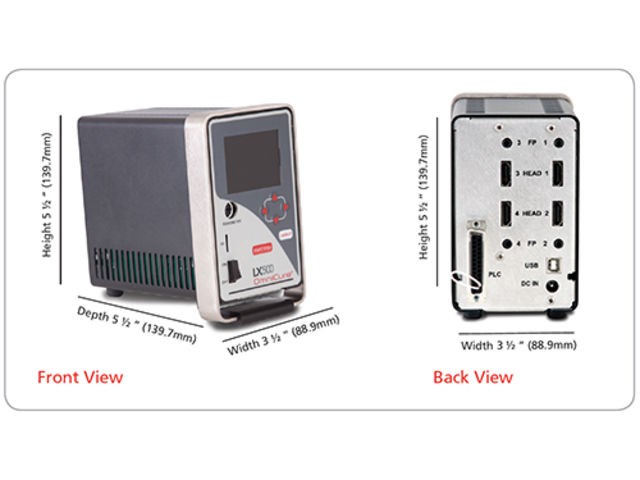

Proprietary technology to monitor, LED temperature, lifetime and optical stability ± 5% Closed-Loop Feedback Intelli-Lamp™ LED Full color display for improved viewing of programs and operation settings Available in 2 or 4 channel configuration Width 3 ½ (89mm), Depth 5 ½ (140mm) , Height 5 ½ (140mm) 4-way membrane keypad PLC (programmable logic controller) – Foot pedal – USB connected directly into a PC Additional programming capabilities Storage of application data and error faults in real time
