Omnicure Led Light Meter

UV lamp

MOTORAZR2 V8 Luxury Edition: A stunning blend of cutting-edge technology and bold, sophisticated details, this special edition RAZR2 has gone luxury with 18k and 24k gold plated accents standing out...

“ - Small form factor fits into limited spaces - Peak hold function detects/records peak measurements - Broad linear dynamic range for measuring from any LED light source - Multi-point wavelength calibration for accurate measurements - Offering maximum reliability and control for UV assembly processes ”

Ask for a quote

Presentation

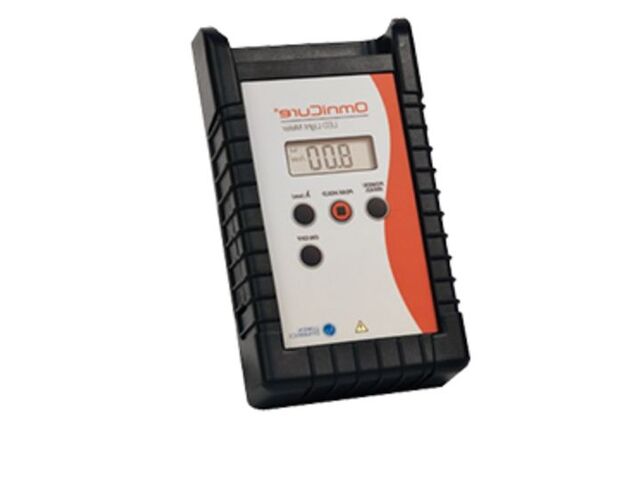

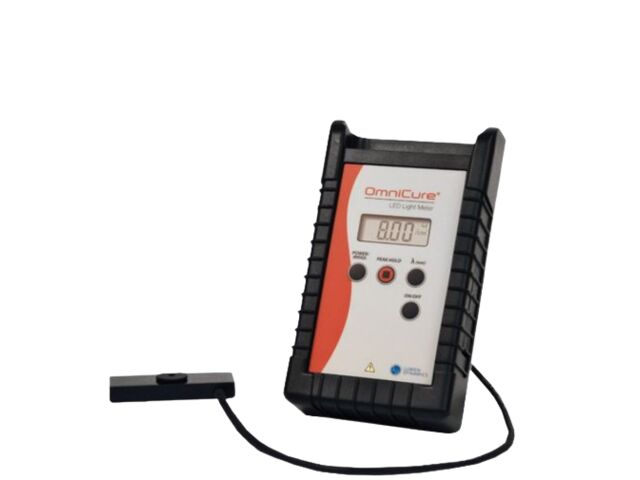

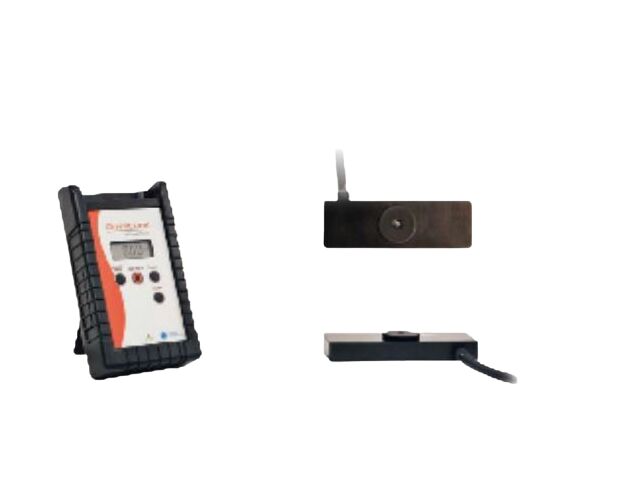

The OmniCure® LED Light Meter offers the ability to accurately measure power and irradiance from an OmniCure® LED UV curing system, or any other LED UV source, directly at the cure site. With the narrow wavelengths emitted from an LED spot source, specific challenges arise when measured with a radiometer calibrated using a broadband source.

The OmniCure® LED Light Meter is specially designed with the ability to select specific wavelengths for measurement. When used with the sensor calibrated with a near monochromatic source, potential inaccuracies in
measurement are eliminated that would normally occur due to the narrow spectral distribution of a UV LED source.
Featuring a peak hold function, the OmniCure® LED Light Meter allows users the ability to easily measure narrow
beam patterns for capturing peak irradiance.

With a fine aperture that is calibrated with precision, accurate and consistent measurements can be obtained over a broad dynamic range. Manufacturers are able to achieve greater accuracy with ease of use while maintaining a reliable and controlled UV assembly processes. The OmniCure® LED Light Meter is calibrated according to protocol standards traceable to NIST and NRC :
• NIST - National Institute of Standards and Technology
• NRC - National Research Council

Technical features

Spectral Sensitivity Selectable wavelengths programmable from 320-750nm Accuracy +/- 10% Sensor Dimension 165 mm x 100 mm x 44 mm Meter Dimension 75 mm x 25 mm x 11.95 mm Resolution : Irradiance : 1mW/cm2 / Power : 1mW

Download the complete technical features
