Omnicure AC 450 & AC 475

UV lamp

“ - High speed curing for adhesives, coatings and inks - Greater flexibility in the curing process via high peak irradiance available at longer working distances - Even and consistent curing through excellent uniformity across the full LED area - Ability to select the optimum wavelength for the adhesive, coating or ink and also the substrates to best suit specific applications - Easily integrated into any workstation with no additional venting, ozone extraction or chillers required - Ability to automate for increased productivity - Easily integrated into any workstation ”

Ask for a quote

Presentation

Ideal for curing of adhesives and coatings in electronics, optics and medical device assembly or inks in print, marking and coding applications.

Exceptional Irradiance Performance

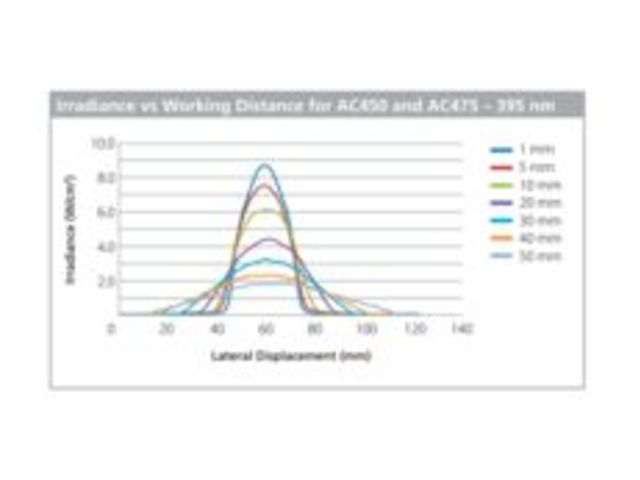

The OmniCure® AC450 and AC475 utilize high emission LEDs which achieve over 8W/cm2 at the optics window. The systems include advanced front-end optics to provide high peak irradiance at long working distances with extended clearance of conveyed parts. This allows for easier curing, or the option of focusing the light at different working distances for adapting to a specific UV process.

Superior Uniformity & Extendible

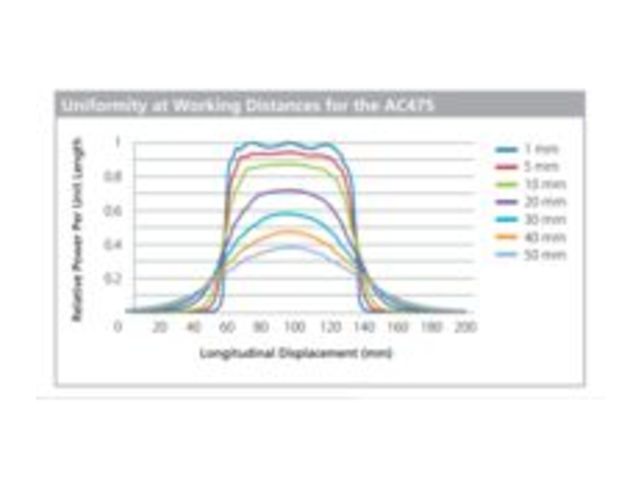

Utilizing Lumen Dynamics’ patented process for individually addressing each UV LED module output, the OmniCure® AC450 and AC475 offers consistent results by ensuring high longitudinal uniformity over the entire 50mm (2’’) to 75mm (3’’) curing area. A uniform exposure area allows for curing of larger and/ or multiple parts simultaneously. It also offers the ability to convert a static curing process to one where parts are being cured while in motion in order to increase throughput.

Flexibility with Control

Precise control of the UV irradiance level and time ensures that the correct dose of UV energy at the required wavelength is provided on every exposure for a repeatable curing process. Intelligent system monitoring and control
ensures system reliability meets the demands for any application.

Technical features

Output of over 8W/cm² Custom front-end optics Patented process for addressing individual LED modules Available in 395nm and 365nm Air-cooled I/O Port for remote operation Compact size

Download the complete technical features
