UV LEDs for the Wide Format Printing industry - LEDcure - LEDcure : VZ 16W/cm² UV LED

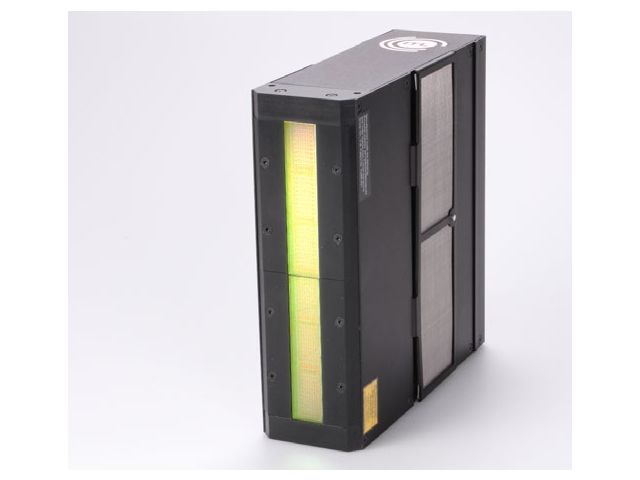

VZ LEDcure is specifically designed for the needs of the Super Wide and Grand Format Printing industry with 16W/cm² output, and 20% more dose than it’s sister product the SZ LEDcure. Over the years the SubZero and VZero products have been established as some of the world’s leading UV curing systems for inkjet applications. Now Integration Technology is introducing the next generation of the family; VZ LEDcure.

The Research and Development team at ITL have used all of the proven features and benefits of their existing LED systems and refined them to new levels in a market leading new air-cooled UV LED Curing device. When compared to the older generation of LED systems, remarkable progress has been made in the drying performance of VZ LEDcure.

By combining and integrating ITL’s latest XT8 high efficiency array and VARIcool technologies, the VZ LEDcure enables users to achieve higher efficiency and more output in terms of both intensity and dose.

High-performance LEDs

VZ LEDcure is ready to use immediately after switch on, there is no warm-up or cooling times, which saves both time and energy. LEDs have a long service life of greater than 20,000 hours, and in addition modules in the VZ LEDcure can be easily replaced if required for either upgrade or servicing. Available wavelengths: standard 395nm, or alternative wavelengths of 365nm, 385nm, 405nm, or mixed wavelength arrays are available on request.

Warranty

Integration Technology grants a warranty of five years on each XT8 LED module. Older systems can also be upgraded with the XT8 technology, then this warranty also applies to those modules.New UV LED systems from ITL are all fitted with the innovative XT8 boost technology as standard.

High Flexibility

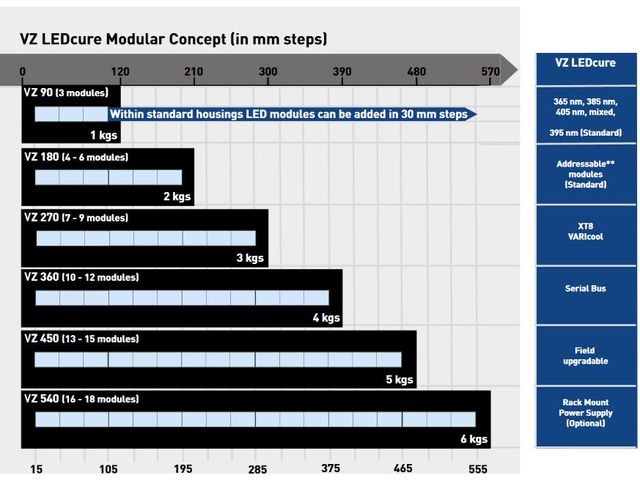

VZ LEDcure is specifically designed for the needs of the Wide Format Printing industry with 16W/cm² output, yet 20% more dose than it’s sister product the SZ LEDcure. The modularity of VZ LEDcure allows to fully customize the system in a single housing greatly simplifying cabling. Sizes of housings are specially designed to fit in all different models of printers with bus connectivity available as standard. According to the print width, LED arrays can be switched on/off (Addressability) or added inside the housing in 30 mm steps.
