Omnicure R2000 Radiometer

UV lamp

“ - Using a single Radiometer, maintain process control and save setup time by calibrating multiple systems with a preferred irradiance set point - Proprietary detector system for accurate wideband measurements suitable for many different light sources - Proprietary optical interface that virtually eliminates beam profile dependence and significantly improves measurement accuracy - Memory for storing data and communicating with PC software for downloading - Ready for use with additional custom accessories such as the Cure Ring Detector and the Cure Site Detector ”

Ask for a quote

Presentation

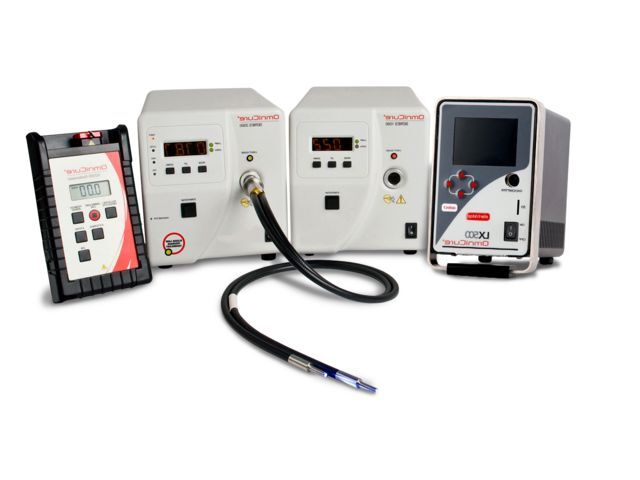

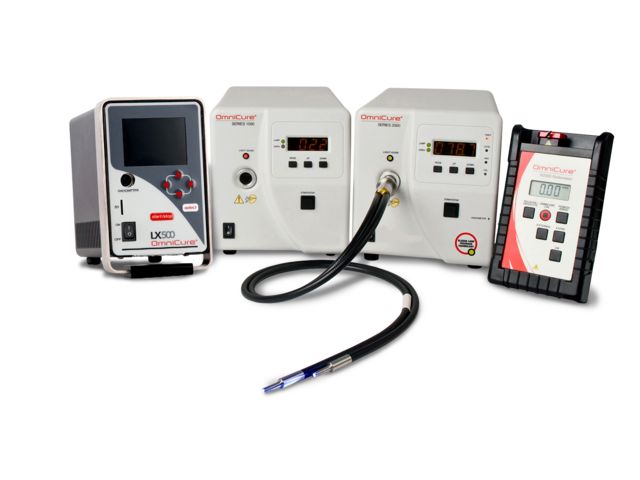

Radiometry is an essential link for measuring the light output from a UV curing system in order to maintain a repeatable process. The OmniCure® R2000 UV Radiometer can be combined with the OmniCure S2000 Spot UV Curing System to provide a complete curing station with unmatched control and repeatability. Special electronics built into the R2000 UV Radiometer also allow for the connection of custom sensors that measure light energy directly at the cure site or within cure ring bonding fixtures.

Accurate radiometry is essential to maintaining a calibrated and repeatable UV curing process suitable for consistent, high-quality production. The OmniCure® R2000 Radiometer is the most advanced and accurate tool for measuring irradiance or power from your UV Spot Curing System. Developed in cooperation with the OmniCure® Platform of UV Curing Systems, the portable OmniCure® R2000 Radiometer offers unmatched performance to calibrate and set irradiance levels on your OmniCure® S2000 Curing System.

Technical features

Wavelength Range 250nm - 1μm (with suitable calibration) Maximum Range Power: 1mW-12W Irradiance: 5mW/cm² - 60W/cm² (with 5mm Light Guide) Resolution Power: 1mW Irradiance: 5mW/cm² (with 5mm Light Guide) Accuracy +/- 5% typical; +/- 10% maximum Power supply Lithium battery 3.6V Dimensions (LxWxH) 7 1/2” x 4 3/8” x 2” (19.0cm x 11.1cm x 5.0cm)
