Cost effective, High Powered UV LED - LEDcure Z-Series : MZ 6W/cm² UV LED

Cost effective, High Powered UV LED - LEDcure Z-Series : MZ 6W/cm² UV LED - IST FRANCE

Cost effective, High Powered UV LED - LEDcure Z-Series : MZ 6W/cm² UV LED - UV lamp

Cost effective, High Powered UV LED - LEDcure Z-Series : MZ 6W/cm² UV LED - produit présenté par IST FRANCE

Cost effective, High Powered UV LED - LEDcure Z-Series : MZ 6W/cm² UV LED

UV lamp

• Bimetal bearing with steel backing and bronze overlay • Particularly suitable for high specific loads with oscillating motion and low frequency • Applicable in rough operation conditions • High load...

Ask for a quote

Presentation

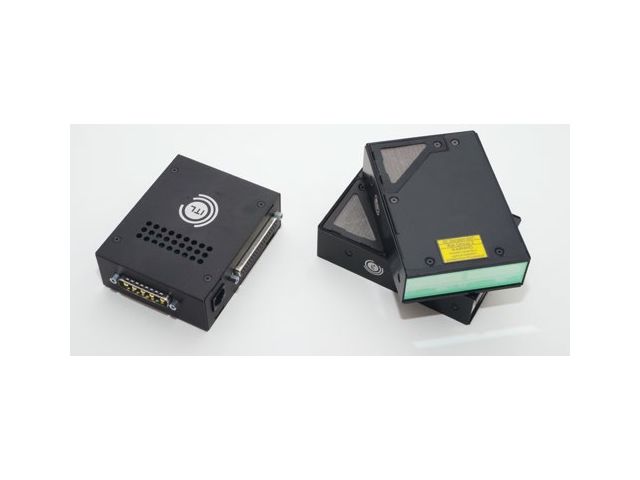

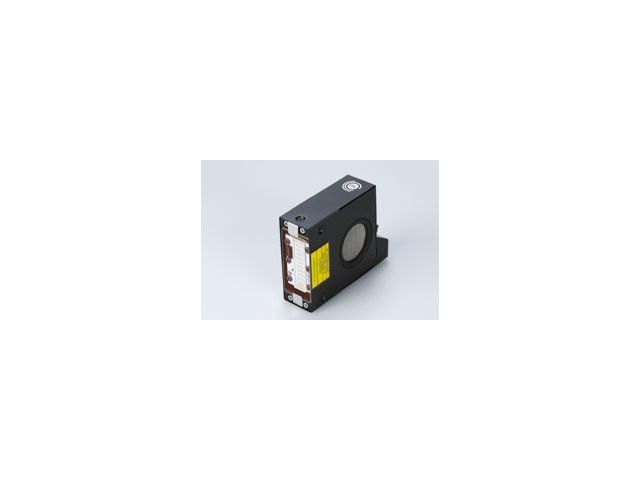

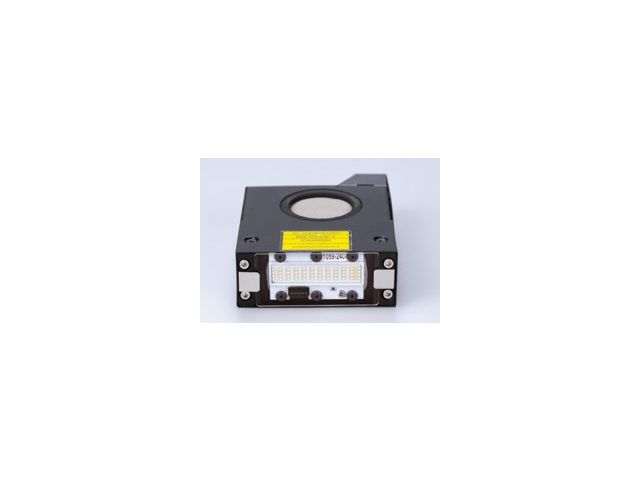

R&D developments have provided ITL with an industry leading compact, cost effective yet high performance air cooled UV LED solution; the MZ LED. Specifically targeted at small to medium wide format graphics printers and digital industrial markets. It is particu-larly useful where space and form factor can be an issue.

The compact and lightweight architecture specifically matches direct to product printing as well as other emerging technologies. The MZ offers the highest degree of flexibility. With both standard I/O or serial bus interfaces as standard, the RS485 control is capable of driving up o two 320mm or one 640mm versions, greatly redu-cing the cabling needed. Alternatively the MZ can also be run through a more traditional digital I/O set of controls. By mounting lamp units end to end MZ can be scaled to any required length.

As a result of the very latest semiconductor packaging, the peak intensitiy of 6W/cm² delivers an unbeatable class leading dose, outperforming other products of this type with much higher indicated peak intensities. MZ is also an ideal solution for industrial inter colour curing or high speed pinning where the lampheads do not need to be mounted directly next to a print head. Alternate the emitting window can be equipped with a focussing lens for reduced scattering light.

MZ can be provided as a total solution including Power Supply, ‘Smart Hub' and the required interconnecting cables or as components only.
