Datapaq Furnace Tracker20-channel for Metals+Glass

Datapaq Furnace Tracker20-channel for Metals+Glass - Fluke Process Instruments GmbH

Datapaq Furnace Tracker20-channel for Metals+Glass - Temperature recorder

Datapaq Furnace Tracker20-channel for Metals+Glass

Temperature recorder

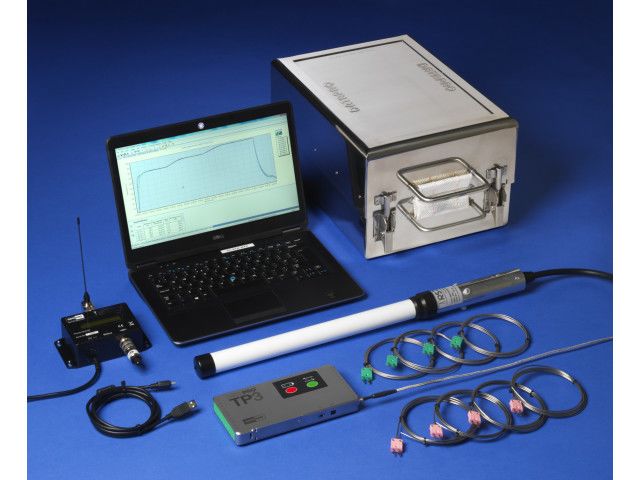

DATAPAQ temperature profiling systems include high-accuracy industrial-strength data loggers, analysis software, thermal barriers, and thermocouples. DATAPAQ AutoPaq is a customized thermal profiling...

Ask for a quote

Presentation

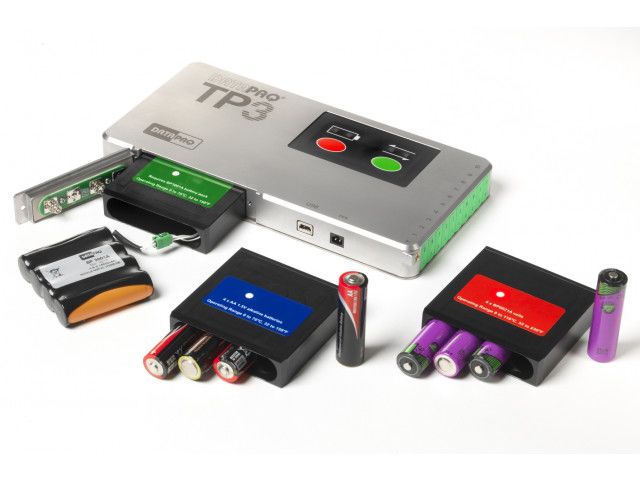

DATAPAQ TP3 data logger
* 10 or 20 thermocouple channels
* Temperature range: -100 °C – 1370 °C/-148 °F – 2498 °F
* Sample interval: 0.1 sec – 50 min without telemetry; 1 sec – 50 min with RF radio data transmission
* Memory: 3.6 million data points
* Robust stainless-steel machined case
* High logger accuracy: ±0.3°C (±0.5°F)

Comprehensive thermal barrier range for
* Heat treatment and TUS
* Vacuum carburizing and vacuum heat treatment
* Aluminum solution treatment and age hardening
* Steel slab and billet reheat
* Controlled atmosphere brazing
* Aluminium vacuum brazing

Specialized software for TUS applications is trusted by hundreds of our customers to meet the stringent requirements of AMS2750E and CQI-9 certifications.

Fluke Process Instruments offers a wide variety of PTFE, glass fiber or mineral insulated thermocouples to withstand harsh environments and high temperatures, conforming to the highest standards and providing the most accurate data possible.

Technical features

Measurement temperature: 1370 °C (max) Number of channels: 10 or 20 channels Connectivity: USB or Bluetooth as standard Memory capacity: Up to 3.6 million datatpoints Sampling interval: 0.1 sec – 50 min Maximum operating temperature: Up to 110 °C Logger accuracy: ±0,3 °C (0.5 °F) Battery: Lithium, NiMH rechargeable, Alkaline x 4AA Thermocouples: Standard type K, more types on request, combination of different types is possible Max. dwell time in furnace: 400 °C (792 °F) for 18 hrs / 1000 °C (1832 °F) for 7.5 hrs

Download the complete technical features
