Fluke Process Instruments GmbH

DATAPAQ EasyTrack3 Thermal Profiler Powder Coating

Temperature recorder

Ask for a quote Receive Documentation Contact the supplier

DATAPAQ temperature profiling systems include high-accuracy industrial-strength data loggers, analysis software, thermal barriers, and thermocouples.
EasyTrack3 Thermal Profiling System is designed for temperature profiling of powder coating ovens and products.
With choice 4 or 6 measurement channels, the EasyTrack3 system allows you to monitor and record product temperatures in your curing oven. Use the detailed temperature profile data to:
• Monitor and prove QA
• Optimize your powder coating oven performance and save energy costs
• Identify potential problems in your powder coating process and correct them quickly and efficiently

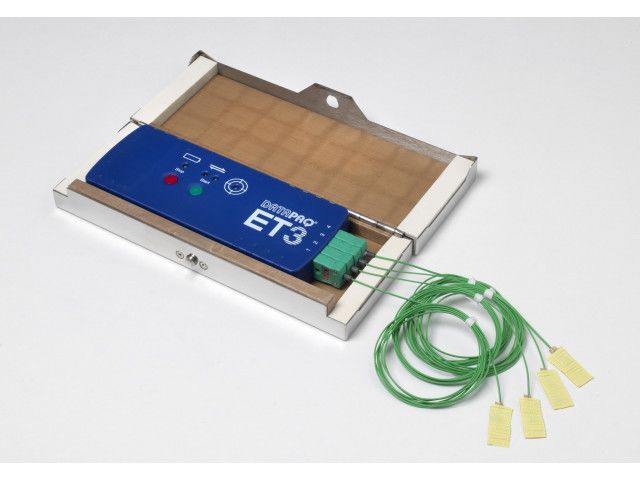

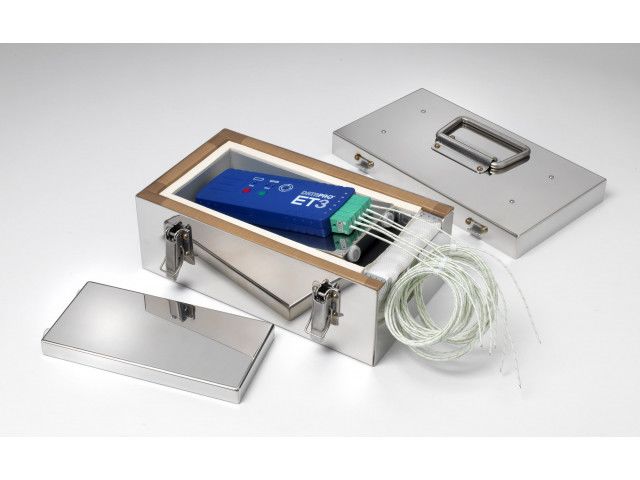

The range of thermal barriers is designed to match different coating applications or operational needs. These provide dual protection confidence using microporous insulation and phase change technology and maintain logger temperatures at a level to guarantee the accuracy of the temperature measurements recorded.

Number of channels: 4 or 6 Measured temperature range: -150...500°C (-238...962°F) Thermocouple type: K (mini-plug) Logger accuracy: ± 0.5°C (± 0.9°F) System accuracy: ± 1.6°C Thermocouple accuracy: Specified to ANSI MC96.1 special limits of error ±0.4% or 1.1°C (34°F) Cold junction compensation: Yes, accuracy guaranteed with change in logger temperature Resolution: 0.1°C (32°F) Logger case: High-temperature cool-touch molded polycarbonate <100°C (212°F) Sampling interval: 0.5 s to 60 min
Download the complete technical features
