DATAPAQ ET3 Temp. Data Logger for Powder Coating

Temperature recorder

Ask for a quote

Presentation

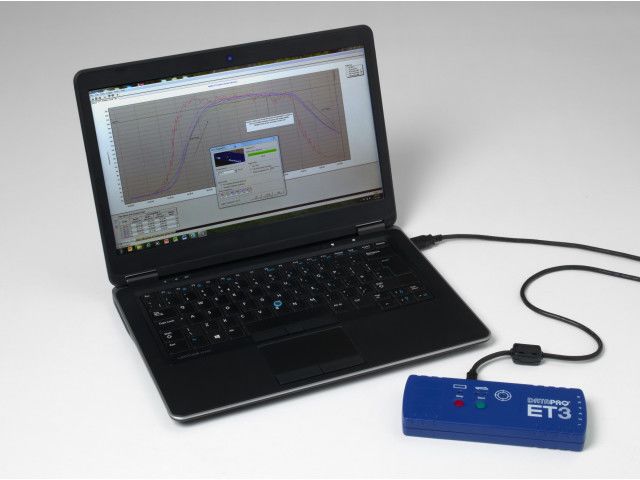

The DATAPAQ EasyTrack3 thermal profiling system is the third generation of the globally accepted EasyTrack brand successfully used by powder and paint coating applicators and suppliers.
The DATAPAQ ET3 datalogger guarantees accurate temperature profiling and is designed with the easy two-button operation. Improved logger memory of x3 permits the profile detail your coating process demands (0.5 s sample interval = 2.5 hours run). A battery life is improved x2.5 over previous gen. Performing safely in up to 85 °C/185 °F, the plastic cool-touch case allows safe and comfortable handling even after the most demanding runs. Supplied with onboard calibration certificate, the logger provides complete traceability to comply with QA standards.
• Improved logger design with more memory, battery life and onboard intelligence
• New EasyTrack Insight Professional Software option with more operation, analysis & reporting power
• New capabilities with multiple runs & SmartPaq PASS/FAIL indicator

Technical features

Number of channels: 4 or 6 Measured temperature range: -150...500°C (-238...962°F) Thermocouple type: K (mini-plug) Logger accuracy: ± 0.5°C (± 0.9°F) System accuracy: ± 1.6°C Thermocouple accuracy: Specified to ANSI MC96.1 special limits of error ±0.4% or 1.1°C (34°F) Cold junction compensation: Yes, accuracy guaranteed with change in logger temperature Resolution: 0.1°C (32°F) Logger case: High-temperature cool-touch molded polycarbonate <100°C (212°F) Sampling interval: 0.5 s to 60 min
