Datapaq Reflow Tracker Temperature ProfilingSystem

Temperature recorder

Ask for a quote

Presentation

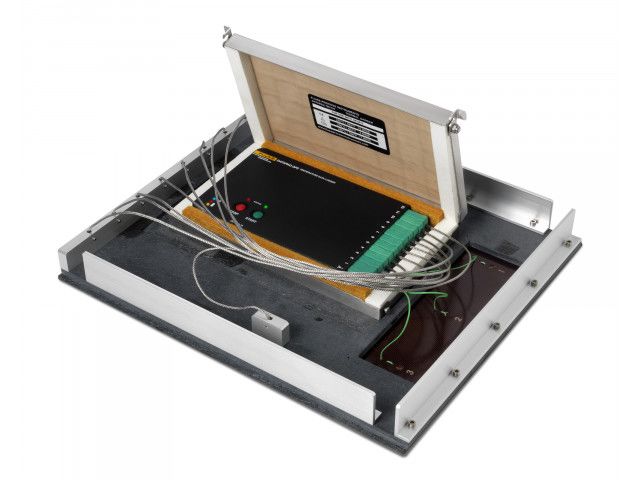

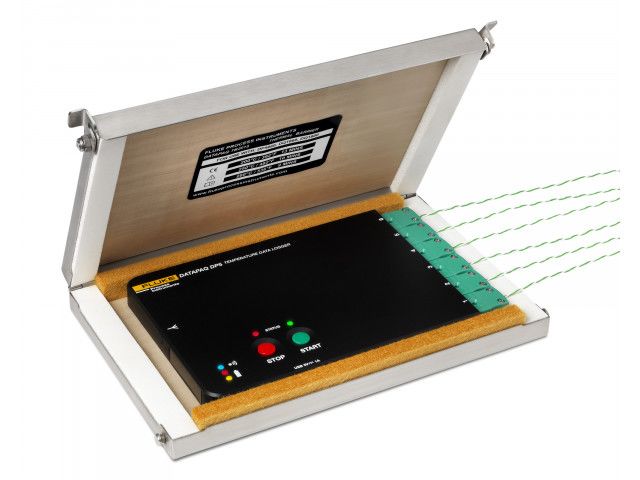

DATAPAQ Reflow Tracker temperature profiling systems
Program includes

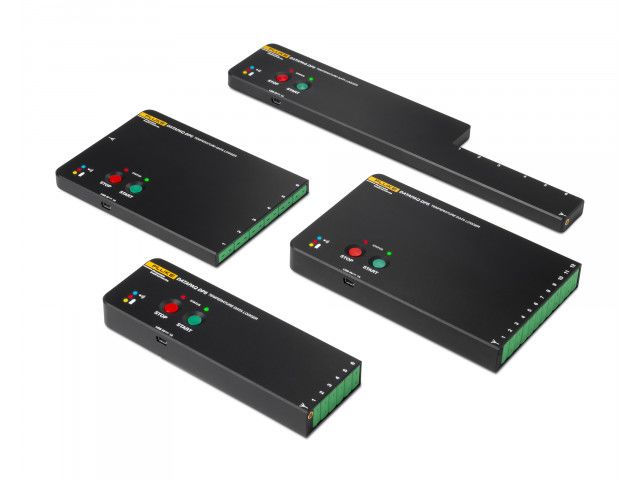

- range of high-accuracy, industrial-strength, compact Datapaq DP5 data loggers

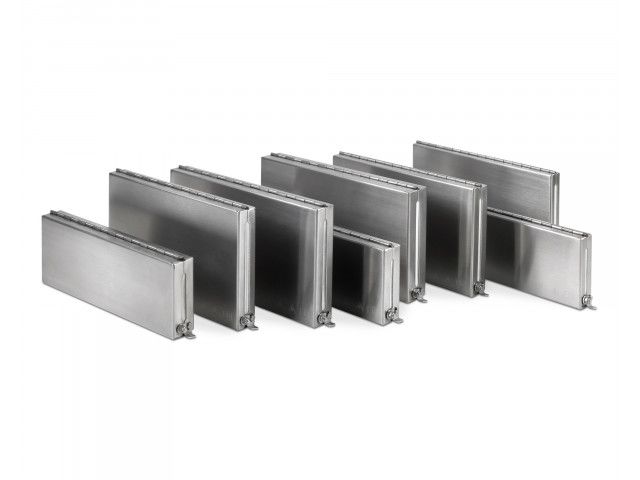

- range of low-height thermal barriers
- DATAPAQ Insight Reflow Tracker analysis software
- selection of fast-response, high-temperature thermocouples for measuring SMD and PCB temperatures and process stability
Applications include
- WAVE SOLDERING – accessory: DATAPAQ wave pallet with up to 9 contact sensors and 3 preheat sensors; software functions include contact times and parallelism
- SELECTIVE SOLDERING – accessory: DATAPAQ PA2200 selective soldering sensor for process stability measurement
- VACUUM SOLDERING – optional data transmission via radio enables real-time data analysis
- VAPOR PHASE SOLDERING – program includes a special range of sealed and lighter-weight thermal barriers
- REWORK STATIONS – the DATAPAQ DP5 data logger with its USB and Bluetooth connectivity is ideal for high-speed, real-time monitoring

Technical features

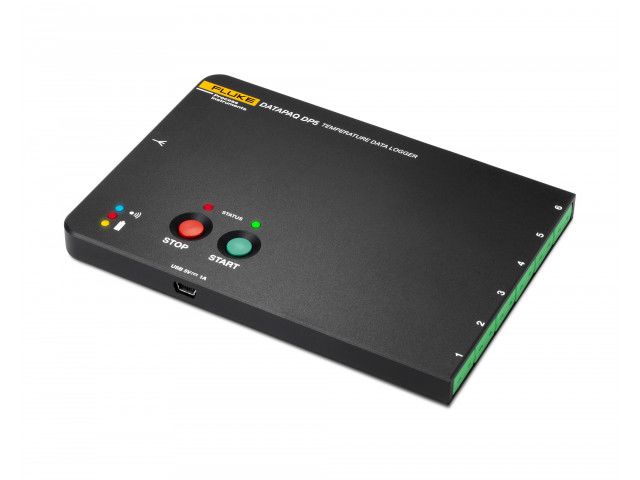

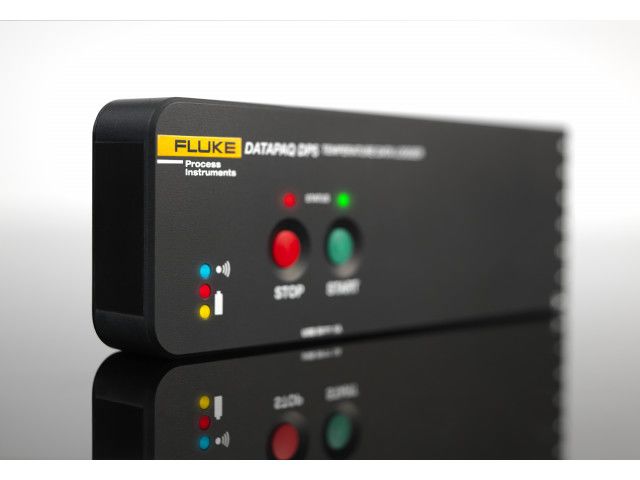

Data logger: Datapaq DP5 Temperature range: -100 °C to 1370 °C (-148 °F to 2498 °F) Number of measurement channels: 6 or 12 Data logger accuracy: ±0.5 °C (±0.9 °F) (for sampling interval >0.4 seconds) Memory: 50,000 readings per channel (fixed) Resolution: 0.1 °C (±0.18 °F) Sample interval: 20 ms to 10 minutes Connectivity: Bluetooth; USB setup, charge & download; radio telemetry optional Battery: NiMH rechargeable, user-exchangeable Thermocouple: Type K

Download the complete technical features
