DATAPAQ DP5 Compact Temperature Data Logger

DATAPAQ DP5 Compact Temperature Data Logger - Fluke Process Instruments GmbH

DATAPAQ DP5 Compact Temperature Data Logger - Temperature recorder

DATAPAQ DP5 Compact Temperature Data Logger - produit présenté par Fluke Process Instruments GmbH

DATAPAQ DP5 Compact Temperature Data Logger

Temperature recorder

Ask for a quote

Presentation

The DATAPAQ DP5 data loggers combine speed of readings, high accuracy and high resolution all in one versatile unit. They are used in short duration low height processes in electronics and coating curing applications.
The DP5 data logger features include:
• Temperature range: -100°C to 1370°C/-328°F to 2498°F (Type K thermocouples)

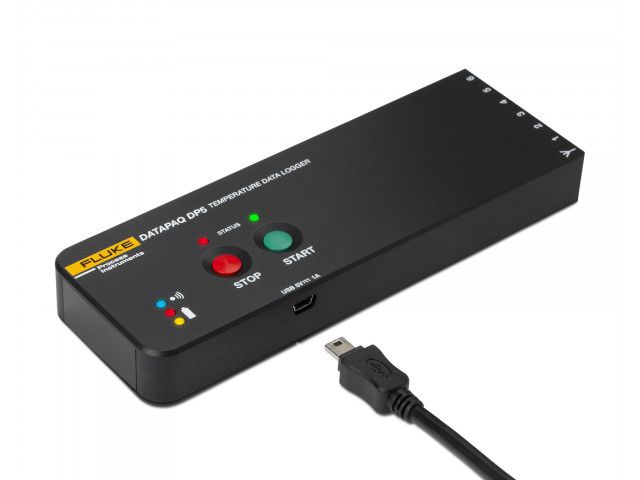

• USB and Bluetooth communication
• Fast sampling capability and large memory

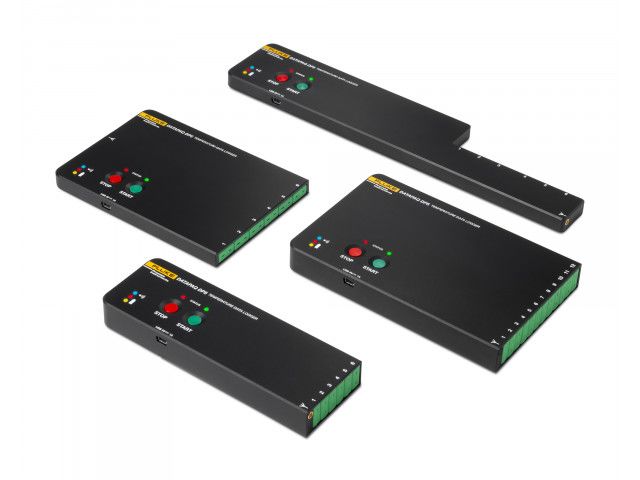

• Available in four height and width options and up to 12 thermocouple channels

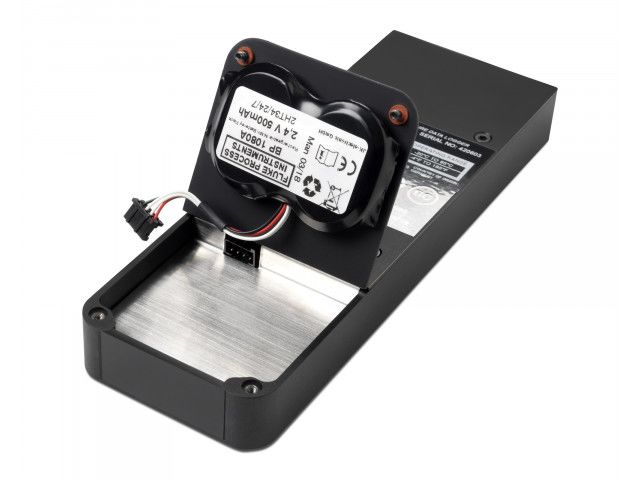

• User-replaceable NiMH battery and charging from any USB power socket ensure the Datapaq DP5 is always ready for use
• Start/stop buttons and time or temperature trigger for improved user control

Technical features

Temperature range: -100 °C to 1370 °C (-148 °F to 2498 °F) Number of measurement channels: 6 or 12 Data logger accuracy: ±0.5 °C (±0.9 °F) (for sampling interval >0.4 seconds) Memory: 50,000 readings per channel (fixed) Resolution: 0.1 °C (±0.18 °F) Sample interval: 20 ms to 10 minutes Connectivity: Bluetooth; USB setup, charge & download; radio telemetry optional Battery: NiMH rechargeable, user-exchangeable Thermocouple: Type K Data collection start: Start/Stop buttons, time or temperature trigger

Download the complete technical features
