Wireless temperature sensor LoRa SPY T4

Temperature recorder

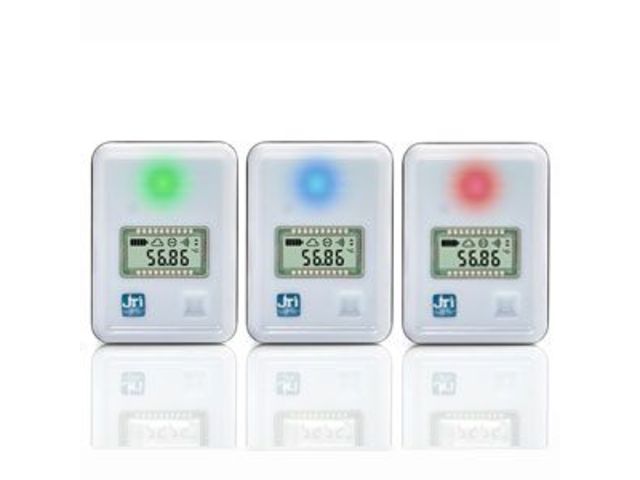

“ Easy-to-use : The recorder is ready-to-use and has status and alarm lights. Excellent measurement accuracy Reliability of a professional measuring instrument Robust Simplified and optimized data exploitation on the JRI MySirius application Fixing eyelets and integrated magnets Non-removable external temperature probe Reflector to strap the pipe and isolate the sensor from the ambient conditions ”

Ask for a quote

Presentation

The LoRa^®SPY T4 measures and records the temperature inside the pipes using a external surface PT 100 probe.
Designed for monitoring the HW system, it can be fastened to the pipe with cable ties without damaging it. The reflector eliminates the influence of the external temperature on the quality of the measurement inside the pipe.
Data are sent to the JRI secure Cloud by LoRaWAN^TM network of the telecom operators members of the LoRa Alliance^TM, or by a local network.
In case of threshold excursions, real-time alerts are sent.

Technical features

Memory :10 000 data points Radio range : up to 16 km open field range Dimensions and weight : 87 x 64 x 25 mm / ~ 100 g Power supply : replaceable Lithium 3,6v battery - lifetime :2 to 4 years Compliance : CE, ROHS, FCC, EN 300 220, NF EN 12830 (when the 06556 probe is used in storage and transport applications) Communication frequency : 868MHz

Download the complete technical features
