Unwinding trolley ST

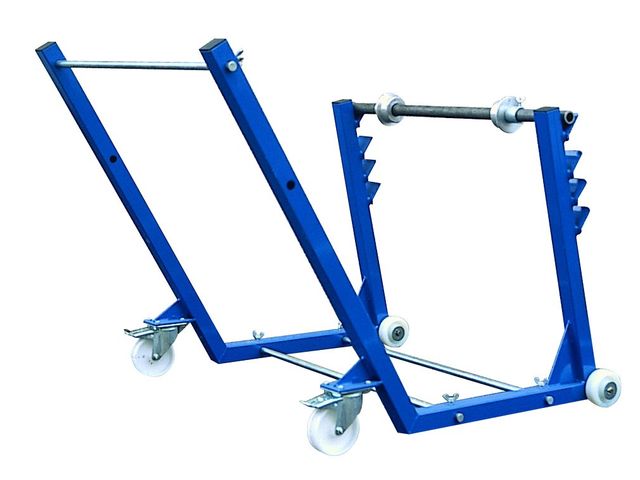

Unwinding trolley ST1

A trolley and unwinder at the same time
Very smooth unwinding thanks to the aluminium centring pins (Ø 78 mm), which turn on a steel shaft (Ø 35 mm).
The shaft unit + 2 centring pins, delivered with the device, may be ordered separately for pre-fitting other cable drums, thus increasing the loading speed (code E3008.030)

Optional measuring devices:
M3-C for cables with Ø 22 mm max (code E3350.001)
M35-C for cables with Ø 35 mm max (code E3350.352)

Capacity (it can carry) : 300kg

Ø of Drums accepted : Ø400-1050 mm
Max Weight : 300kg
Total Weight : 31kg
Dimensions: l 87 x : 1150 x H 680 mm

Code E3008010

Unwinding trolley ST2

A trolley and unwinder at the same time
Very smooth unwinding thanks to the aluminium centring pins (Ø 78 mm), which turn on a steel shaft (Ø 35 mm).
The shaft unit + 2 centring pins, delivered with the device, may be ordered separately for pre-fitting other cable drums, thus increasing the loading speed (code E3008.030)

Allows a single person to load, move ...

Optional measuring devices:
M3-C for cables with Ø 22 mm max (code E3350.001)
M35-C for cables with Ø 35 mm max (code E3350.352)

Capacity (it can carry) : 450kg
Ø of Drums accepted : Ø900-1400 mm
Max Weight : 450kg
Total Weight : 34kg
Dimensions of one stand: l 87 x P 1150 x H 950 mm

Code E3008020

Unwinding trolley ST3

Trolley for lifting, moving and unwinding cable drums.
2 wheels with solid rubber band 300x60 mm (with brake).
Axle Ø60 mm with locking pin Ø8 mm.
Cable guide.

Extension set for the biggest cable drums (Code E3008110).

For cable drum:
   - maximum weight 250 kg
   - Ø 600 to 750 mm (Ø 900 to 1050 mm with the extension set)
   - maximum width 715 mm.

Steel tube construction (supplied assembled)
Yellow epoxy coating Ral 1018

Dimensions: H 800 x W 760 mm
Weight: 19kg

Options :
Extension set for cable drum Ø900 to 1050 mm

Code E3008110

Unwinding trolley ST4

This trolley is very handy thanks to its ergonomic handles.
The load is done in the vertical position and the cable unwinding is done in the horizontal position.
The transport position close to 45° puts the centre of gravity on the wheel centreline and the operator does not therefore bear all the weight.
Kit of 3 wheels for easy climbing the stairs.
Bearing balls to unwind the cable easily.
Safety pin that prevents the cable drum from slipping during transport.

For drums:
   - max weight 100 kg
   - Ø maxi 800 mm.

With epoxy and zinc-plated steel tube

Dimensions: L 1200 x W 600 x H 800 mm (with tube)
Weight: 23 Kg

Code E3008200
