Presentation

New generation LIGHT® range

Steel frame:

- reinforced structure, for a long lifespan
- high-end epoxy finish.

Steel rollers:

- axle on ball bearings
- high quality zinc plated finish.

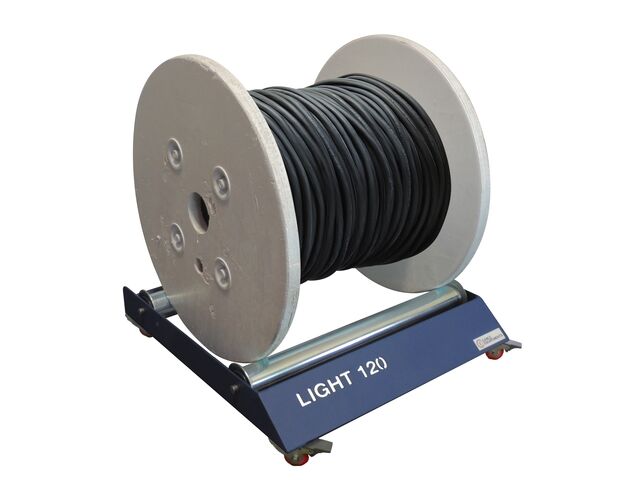

LIGHT 120 and LIGHT 120R

For drums
- diameter 300 to 600 mm
- maximum width 435 mm
- maximum weight 120 kg.

Very light (5.5 kg)
Round bar for a comfortable grip.
2 positions to adjust the rear roller according to the diameter of the reel (spring-loaded axle for quick adjustment).

Dimensions: W464 x D522 x H60 mm

Code EL120

With casters: Code EL120R

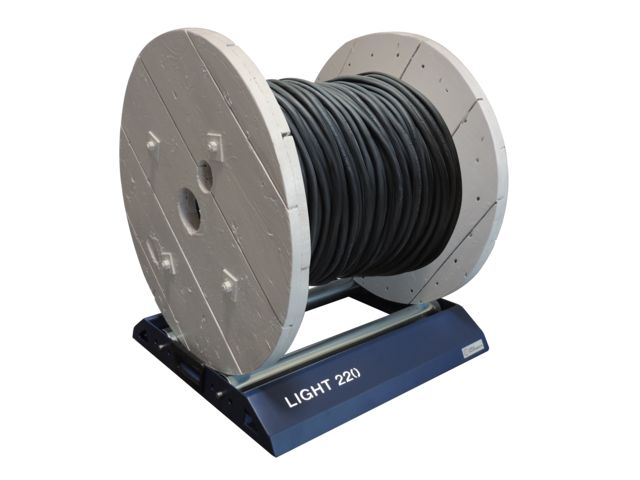

LIGHT 220 and LIGHT 220R

For drums
- diameter 300 to 1050 mm
- maximum width 540 mm
- maximum weight 220 kg.
Very light (7.6 kg)

Ergonomic handles for a comfortable grip.
4 non-slip, height-adjustable pads for perfect stability.
3 positions to adjust the 2 rollers according to the diameter of the drum (spring-loaded axle for quick adjustment).

Dimensions: W562 x D552 x H90 mm

Code EL220
With casters: Code EL220R

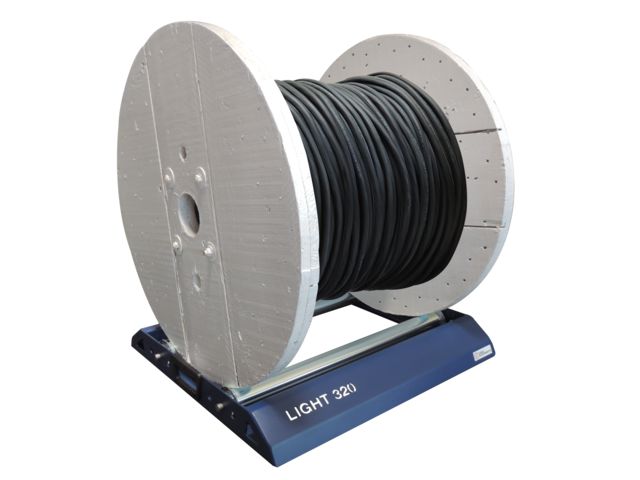

LIGHT 320 and LIGHT 320R

For drums
- diameter 300 to 1200 mm
- maximum width 540 mm
- maximum weight 320 kg.

Very light (12.6 kg)
Ergonomic handles for a comfortable grip.
4 non-slip, height-adjustable pads for perfect stability.
3 positions to adjust the 2 rollers according to the diameter of the drum (spring-loaded axle for quick adjustment).

Dimensions: W646 x D614 x H90 mm

Code EL320
With casters: Code EL320R
