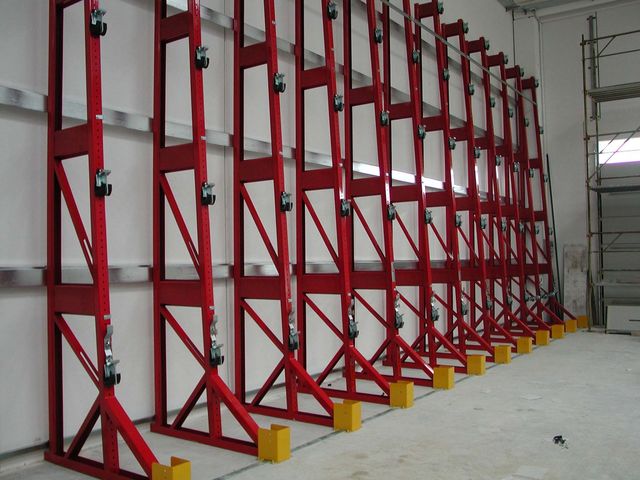

With centralized locking system

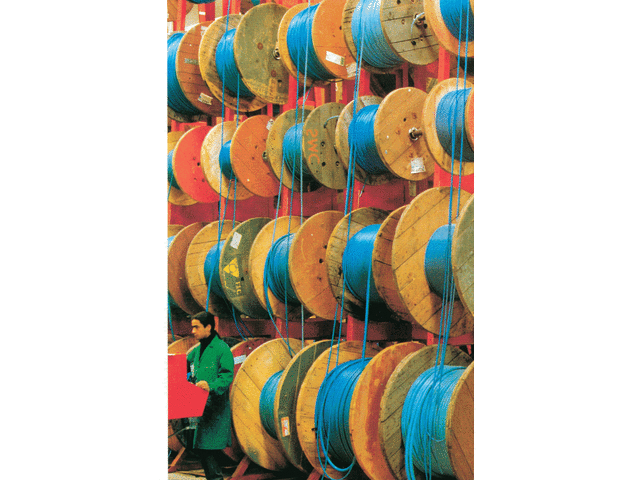

- The storage of cable drums on racks has many advantages (more space, quick viewing of the stock).
- When combined with a coiling machine, this is, for wholesalers and industrials, the most productive organisation for making cable cuts.
- Each cable drum is stored on an independent unwinding shaft.
- Each shaft is fitted with a pair of centring pins made of galvanised steel, which prevents any risk of blocking against the ladders and facilitates the unwinding process.
- Ø of the centring pins: 48-110 mm.
- Total width: 79 mm.
- Must compulsorily be fixed on the ground.
A revolutionary innovation
This new cable drum rack model is a revolutionary innovation which eliminates all risk of the cable drum accidently coming loose during the unwinding: in its operating position, a steel strap closes the shoe on which the unwinding shaft remains and thus prevents it from popping out.
The innovative, patented part of the system is as follows:
- The blocking straps are operated by a toothed bar located behind the vertical ladder
- This toothed bar is controlled by a lever located at the bottom of the ladder, at an shoulder height
- When the operator pushes the lever to the front, all the straps snap into the closed position on all the shoes at the same time.
- The unwinding can then be done safely.
- When the operator pulls the lever towards himself, all the straps move back into the open position.
- Cable drums can then be loaded and unloaded.
Options
- Frontal protections (in front of each ladder)
- Lateral protections (at each end of the lines)
- Braking system on the unwinding shafts
- Labels for the lines, rows and levels
