Presentation

SM12

Easy unwinding of big cable drums, even damaged
The SM12 is made of several elements:

- Two stands (where the rear foot can be dismounted)
- Shaft with centering devices can therefore be moved easily

For cable drums
- diameter: 600 to 1.800 mm
- maximum width 1.100 mm

The shaft turns on 2 ball bearings on each side
Shaft Ø 48 mm, centering pins Ø 55-100 mm

Dimensions of each stand:
l 680 x W 900 x H 700 mm
Total weight: 75 kg

Code INSM1200

Also available for RENT

AXO 6000

For really big drums

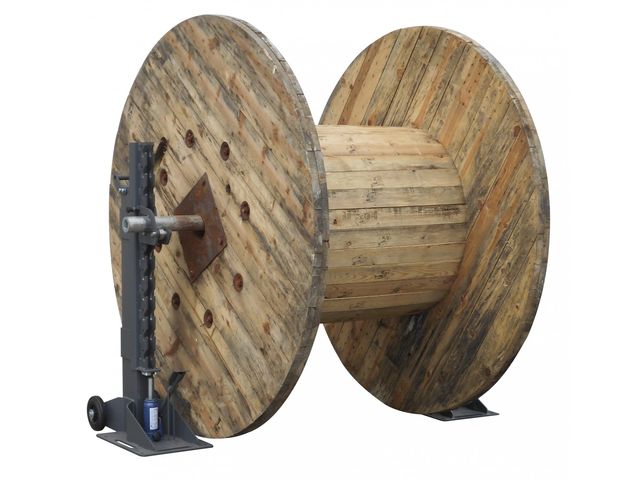

The AXO6000 is intended for unwinding large cable drums on construction sites or in workshops.

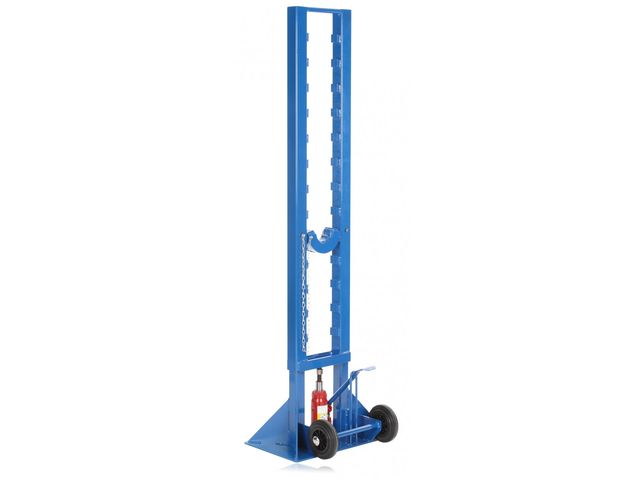

Composed by two hydraulic jacks and one unwinding axle.

For cable drums:
- diameter: 750 to 2.700 mm
- maximum width : 1.650mm
- maximum weight : 6 tons.

Easy unwinding: 2 bearings are provided on each side.

Easy to move by tilting, thanks to the handle, on two 180mm diameter wheels. Lifting eye.

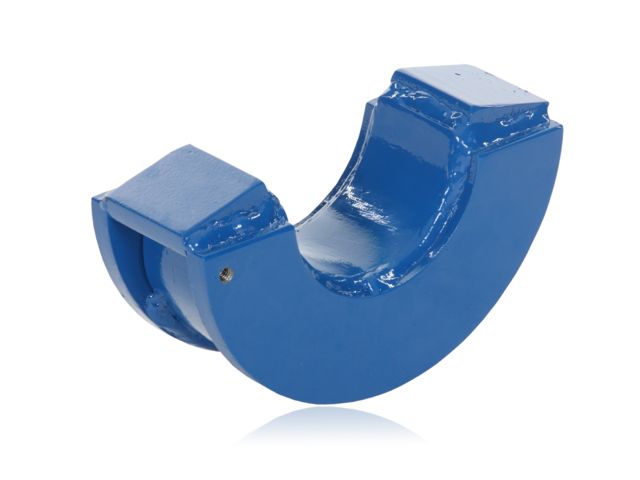

2 hydraulic cylinders with foot pump. Movable clamp (10 positions) to facilitate mounting.

Blocking system for shaft to prevent ejection of cable drum. Once attached to the ground, the AXO6000 can be used in front of a winding machine.
Dimensions of one jack: 650 x 400 x 1360 mm Weight of each jack: 71,5 kg Total weight: 169 kg

Code EAX6000
