Cable drum unwinders

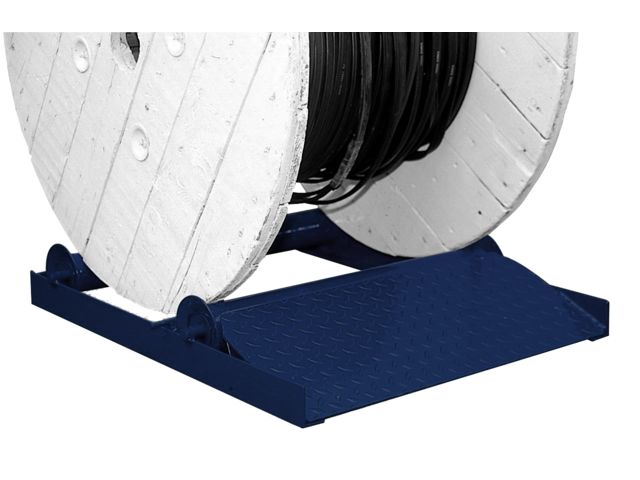

0T200


The classic one with a low price

- Mechanical welded monoblock frame with integrated ramp
- 2 fixed rolls, welded to the frame (Ø 70 mm, length 540 mm)
- Welded cups on roller edges to hold the cable drum
- Max width of the cable drum: 520 mm

Code EDR0200

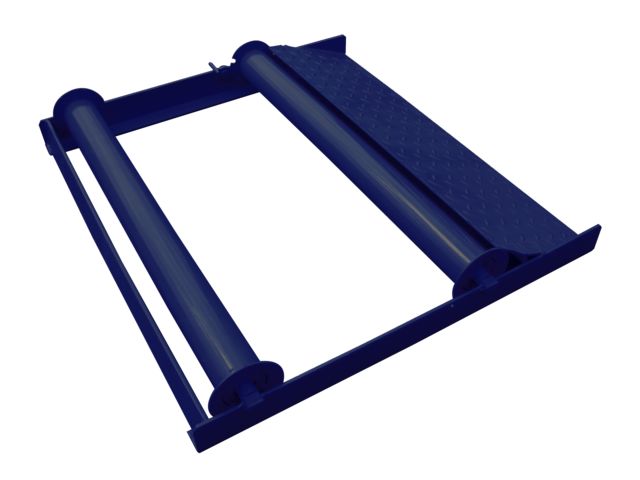

OT800

Classic unwinders with rollers
- Mechanical welded monoblock frame with integrated ramp
- 2 fixed rolls, welded to the frame (Ø 70 mm)
- Waterproof bearings
- Welded cups on roller edges to hold the cable drum
- System for locking the front roller for easing the unloading operations
- Max width of the cable drum: 575 mm
- Max width of the cable drum: 770 mm

Code EDR0800

1T200

Classic unwinders with rollers
- Mechanical welded monoblock frame with integrated ramp
- 2 fixed rolls, welded to the frame (Ø 70 mm)
- Waterproof bearings
- Welded cups on roller edges to hold the cable drum
- System for locking the front roller for easing the unloading operations
- Max width of the cable drum: 575 mm
- Max width of the cable drum: 770 mm

Code EDR1T200

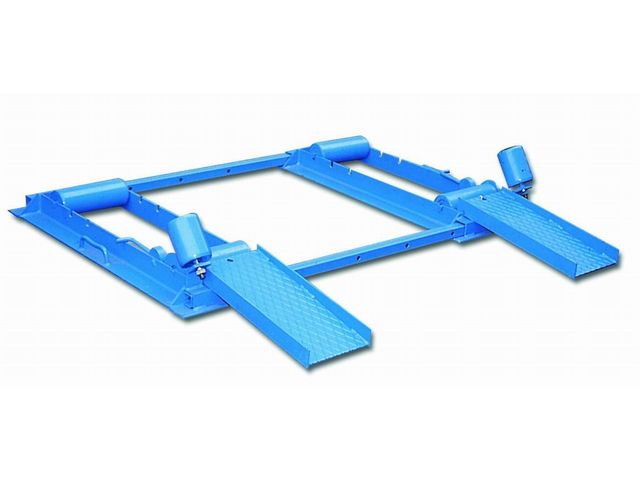

5 à 7 T

The cable drum unwider is made of 2 shoes which are mechanically welded and linked by 2 square tubes, secured by split pins.
Each shoe is equiped with:
- 2 rolls, heavy load, Ø 89mm, length 235mm. The front roller is stationery, the rear roller can be adjusted acording to the diameter of the cable drum
- System for locking the front roller for easing the unloading operations
- Removable ramp
- Guide roller at side
- Carrying handle
- Max width of the cable drum: 1350 mm

Code OBDR5070

7 à 10 T

With hydraulic lifting
The cable drum unwider is made of 2 frames which are mechanically welded. Each frame is fitted with 2 rolls, heavy load, Ø 89mm, length 235mm, each one secured in a shoe.
The set (shoes + rear roller) can be removable to allow the setting of the drum; once it's done, it is later out back in place , the closest to the drum and secured by pins. The set (shoes + front roller), is pushed by an hydraulic jack with a 10 tons force ( manual pump action) and this generates the lifting of the drum from the ground.
Guide roller at side onto the rear roll.
Max Cable drum width nearly endless.

Code OBDR7010
