THERMIBEL S.A.

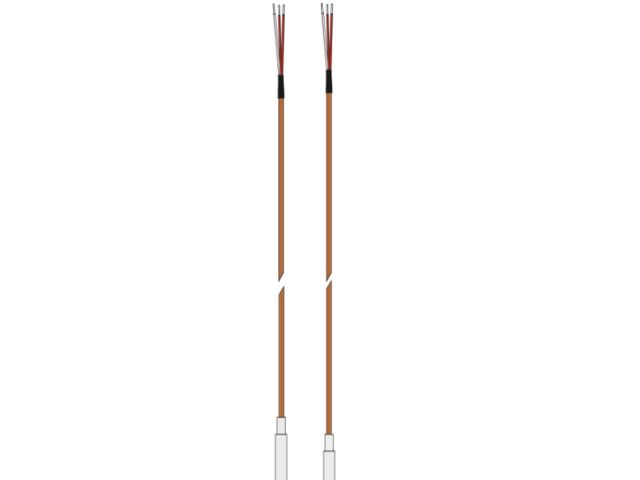

Speared Pt100 probe with cable

Temperature probe

Ask for a quote Receive Documentation Contact the supplier

Sensing element

Pt100 single or duplex
Ceramic or thin layer element
with tolerance class B, A or AA according to IEC 60751 (EN 60751)

Temperature range

-200 to +250 °C

External sheath

AISI 316L seamless tube
Diameter: 6 mm by default, other diameters available on request.
Length: standard 100 mm, any other length on request.

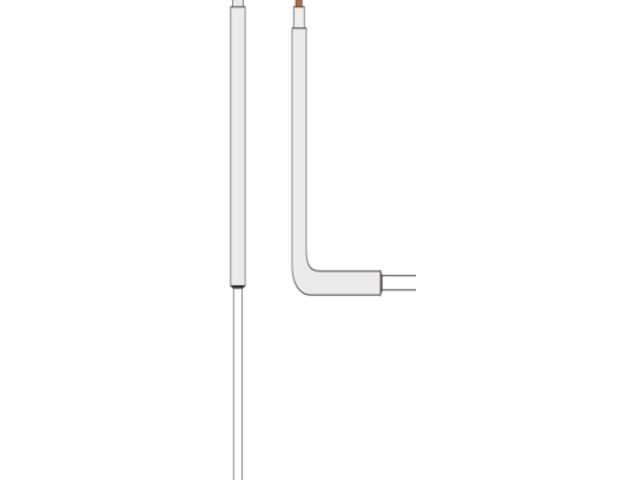

Form

Straight or bended

Cable

Standard Teflon/silicone rubber, PVC, FEP, PFA, glass fibres available in option.
Stainless steel flexible protective sheath available in option.
Cable length: 1 meter, other lengths are also available in option.

Wiring

1 x 3-wire connection. (1 x 2, 1 x 4, 2 x 2, 2 x 3-wire connection available on request)

APPLICATIONS

Food processing and laboratory equipments.
