THERMIBEL S.A.

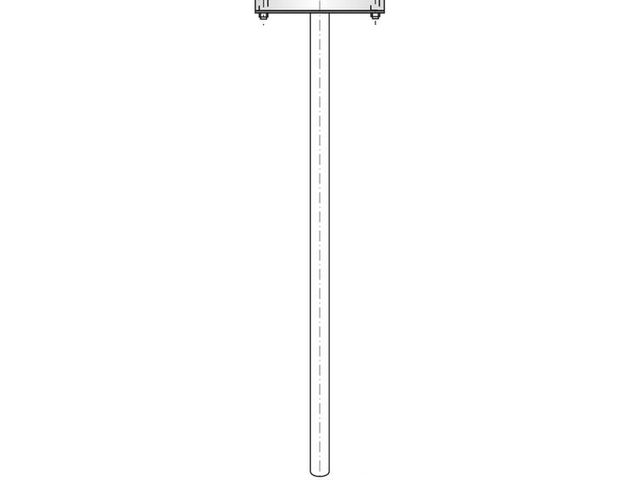

Sheathed thermocouple as replaceable measuring insert

Temperature probe

Ask for a quote Receive Documentation Contact the supplier

Alternative to traditional wire and ceramic beads construction and allows quick replacement of measuring element.
Superior solution to Pt100 inserts for high temperature or high vibration environments.

Sensing element

Thermocouple type K, N, J, T, E
Tolerance class 1 according to IEC 60584 (EN 60584)
Single or duplex

Temperature range

-200 to +1150 °C, depending on thermocouple type,sheath diameter and length

External sheath

AISI 316L or Inconel 600 (other material on request) seamless semi-flexible sheath with mineral oxide filling
Can be manufactured in very long lengths (virtually unlimited)
Totally watertight throughout the length of the insert.

Diameter

6 mm by default: 3 - 4,5 and 8 mm

Process connection

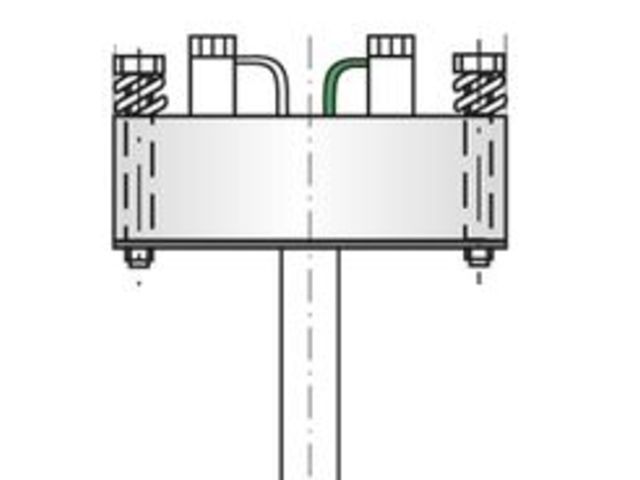

Standard type «B» ceramic terminal block Ø41 mm with 33mm screw axis spacing - Spring loaded M4 screws

Wiring

2-wire (single) or 4-wire (double thermocouple)
Colour code IEC – ANSI available on request
Terminals are labelled + and – in all cases
