Contact thermocouple for pipes

Temperature probe

Ask for a quote Receive Documentation Contact the supplier

Low cost, easy to install pipe temperature monitoring.

Sensing element

Thermocouple type K, J or T
Tolerance class 1 according to IEC 584 (EN 60584)
Temperature range : -100 to + 400 °C (375 °C for type T)

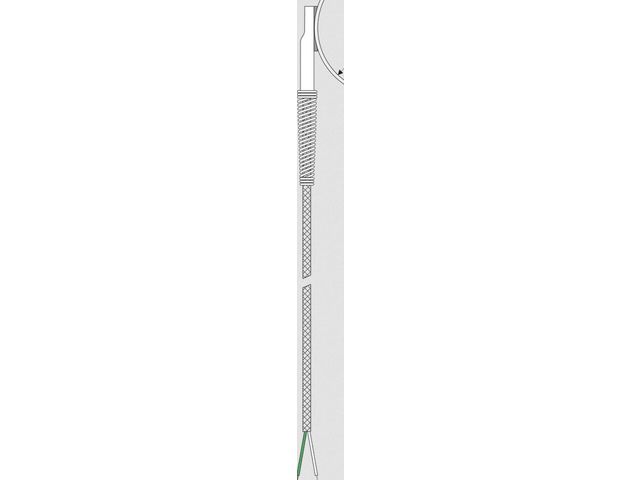

External sheath

AISI 316L seamless tube Ø 6 mm
Length: standard 40 mm, other lengths on request.

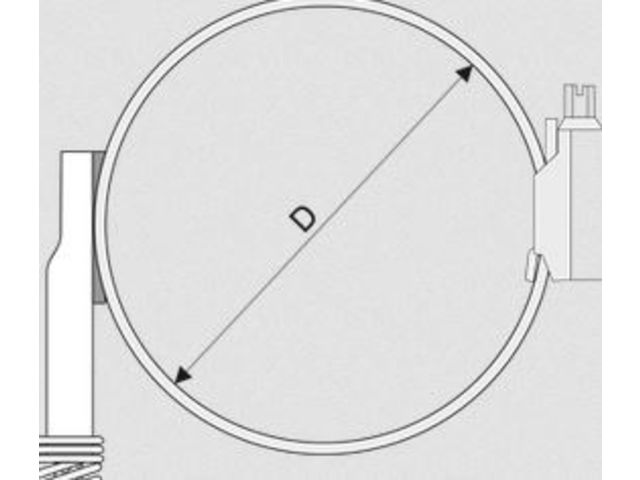

Fixing ring: standard 50 mm diameter
Other pipe diameters on request between 15 and 500 mm

Wiring

Glass fibres with s.s. overbraid
2-wire construction
Cable length : 3 meters, other lengths available in option

Remarks

This probe is also available with a Pt100 sensing element instead of a thermocouple.
See further our data sheet «SI-contact_Pt100-pipes».
