THERMIBEL S.A.

Outdoor Pt100 temperature probe WSR

Temperature probe

Ask for a quote Receive Documentation Contact the supplier

Sensing element

"Pt100 single
with tolerance class B, A or according to IEC 60751 (EN 60751)"

Temperature range

-30 to +70°C

External sheath

AISI 316L seamless tube
Diameter: 5 mm
Insertion length: standard 90 mm, other lengths available on request

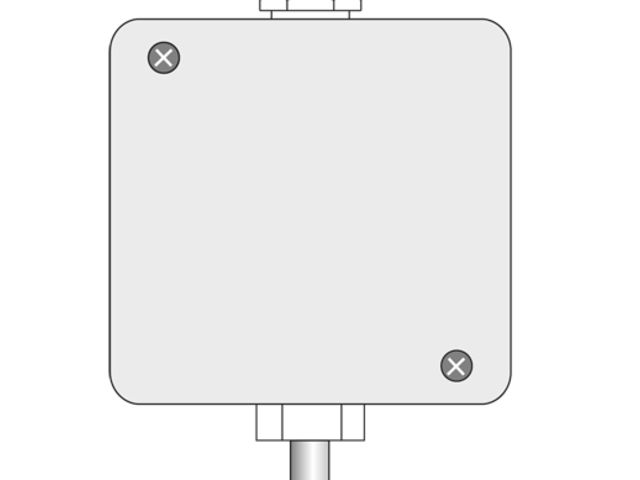

Housing

ABS housing 52x50x35 mm suitable for wall mounting
Protection grade IP 65
Note: Housing is bigger for probes with buit-in transmitter or with Ex ia certification

Wiring

"Standard terminal block 1 x 3-wire connection,
2-wire connection if a transmitter is built in."

APPLICATIONS

Warehouse and storage rooms.
