Modular beer measuring system: Animo 5100

Analyzers

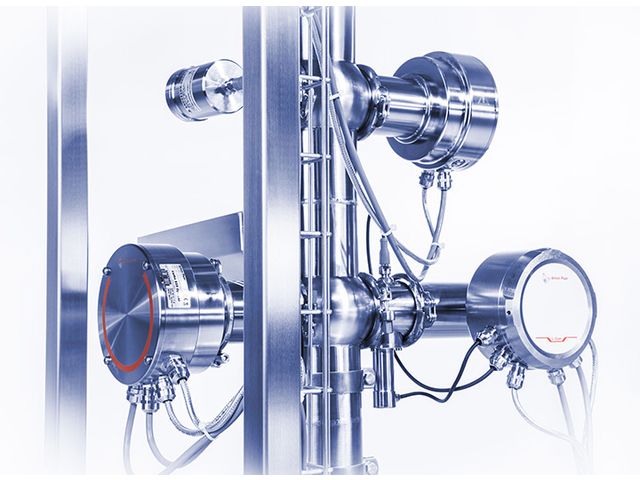

“ Tracing your production quality from your desktop: Davis 5 analysis software With the Davis 5 analysis software, the statistical evaluation and traceability of production line performance and product quality can be done directly from your desktop computer. Davis 5 also enables: Tracing of calibration and adjustment activities and data for reliable proof of measuring quality Automated transfer of laboratory reference values to the process instruments Accurate and reliable alcohol and extract measurement: L-Com 5500 L-Com 5500 is a highly stable combined density and sound velocity sensor which automatically compensates for process variations and changing environmental conditions. It ensures drift-free and reliable measuring results during filler stops and product changeovers. Drift- and maintenance-free CO₂ measurement: Carbo 520 Optical The integrated Carbo 520 Optical inline CO2 sensor is highly economic due to: Zero maintenance due to optical measurement concept Zero drift during CIP and long-term stability due to gas-tight sealed sensor unit Optional sensors for customer-specific solutions Pressure and temperature measurements are carried out by L-Com 5500 and additional sensors can also be integrated upon request. ”

Ask for a quote

Presentation

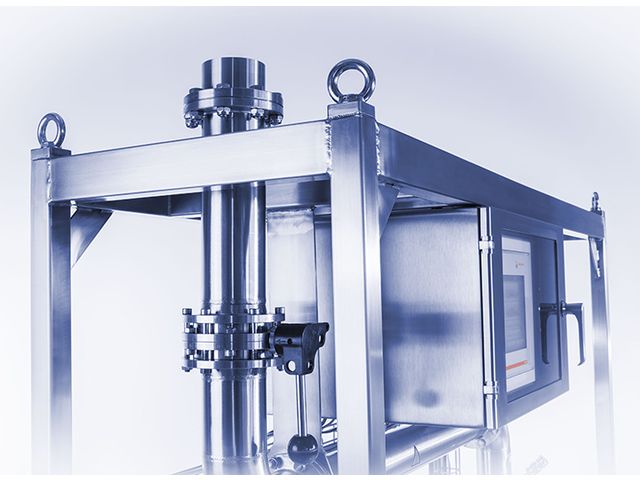

Our fifty years of experience in the beverage industry led to Animo 5100, a complete multiparameter measuring system including the Davis 5 analysis software which performs perfect quality monitoring in the filling line. Animo 5100 comes in either a modular framework construction (skid) that can easily be tailored to your actual production line or as a pipe assembly which is directly integrated into the production line.

By providing services such as project engineering, system design, installation, and commissioning, Anton Paar makes the all-in-one package complete.

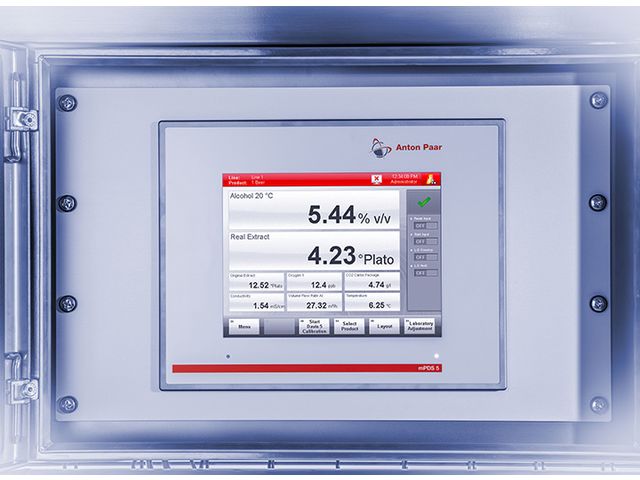

Anton Paar’s process analyzers don’t require time-consuming on-site adjustments as all systems are delivered with factory pre-configurations. The integrated mPDS 5 evaluation unit enables easy data exchange, remote control, and diagnosis via the fieldbus of your choice.
