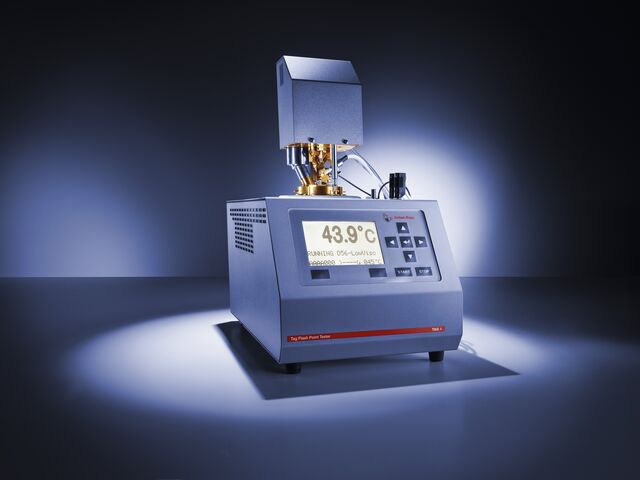

Tag Flash Point Tester: TAG 4

Analyzers

Exceptional double mitre saw.Special fabricated and welded steel bed frame with finish machined, complete with slideways for the mobile head.Pneumatic head tilting from 22° 30' to 90°.Automatic...

“ Convenient Operation Test initiation by pre-installed standard test methods and ability to customize methods by user-defined programs Outside flame sensors increase the system’s safety, especially for work with samples that have no conventional flash point but burn outside the test cup (e.g. due to flame-inhibiting components) Splashproof touch-key panel with large LCD A multi-detector combines the flash point detector and the temperature probe in a solid housing with a perfectly adjusted immersion depth Customized User Flexibility PC-software FPPNet (optional) for convenient remote handling and test data storage Insulation hood (optional) to protect the cover and shutter assembly from icing during low-temperature flash point tests Draft deflector (optional) recommended for gas ignition tests Calibration set (optional) Small-volume sample cup (optional) ”

Ask for a quote

Presentation

The automatic Tag closed-cup tester measures the flash point, the lowest temperature at which the vapors of a sample ignite upon the application of an ignition source. The tester can also be used to detect the ability of a sample to yield flammable vapors when maintained at an equilibrium temperature by the flash/no flash method.
TAG 4 is suitable for flash point applications of jet fuels, solvents, chemicals, etc.

Tag closed-cup flash point tester (ASTM D56 and more)
Flash point applications of jet fuels, solvents, and more
Two cooling systems, liquid or air, with Peltier elements
Two ignition systems, electric and gas, included with each unit

Benefits at a Glance
Two cooling systems with Peltier elements are available: an economical air-cooled model and a low-temperature version with external water cooling
The two ignition systems in each unit give you the flexibility to work with an electric or gas igniter: if the gas ignition is used, the electric igniter will automatically relight the gas flame during the test, if necessary

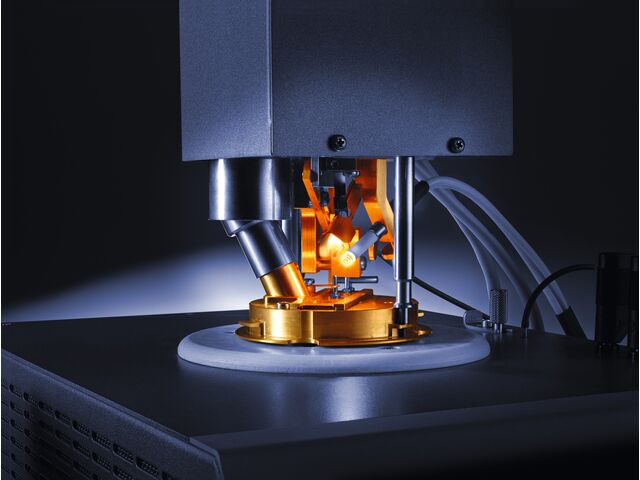

The One-Twist swivel-around multi-function head guarantees the safe and easy one-hand connection of all sensors and actuators such as the shutter release, igniter and detector contacts
An extended measuring range up to 110 °C enables you to go beyond the conventional scope of the method

Technical features

Application range: 10°C to 110°C (air cooled) -30°C to 110°C (liquid cooled) Ignition: Gas and electrical (interchangeable) Heating: Per method or user defined Peltier cooling: Air cooling (integrated fan) Liquid cooling (with tap water or circulating chiller)
