IMPAC Pyrometer IS 6 Advanced

Pyrometers

CEJN Hose Kits come pre-assembled and ready for immediate use. They consist of an extremely flexible, straight braided or spiral polyurethane (PUR) hose combined with Series 310 Standard or Vented...

Ask for a quote

Presentation

Stationary, digital pyrometer for non-contact temperature measurement in ranges between 600 and 3000 °C.

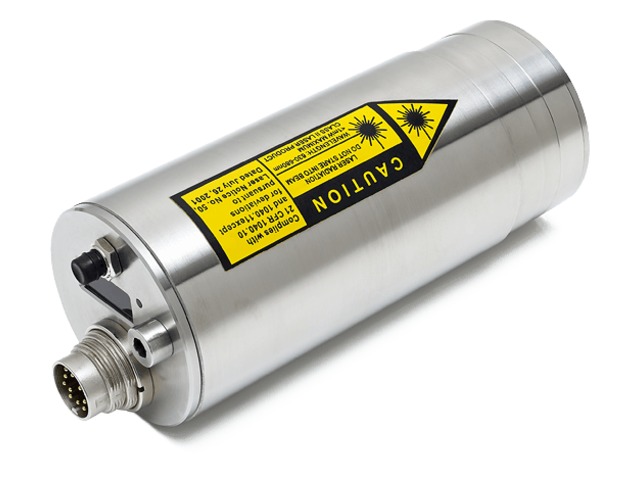

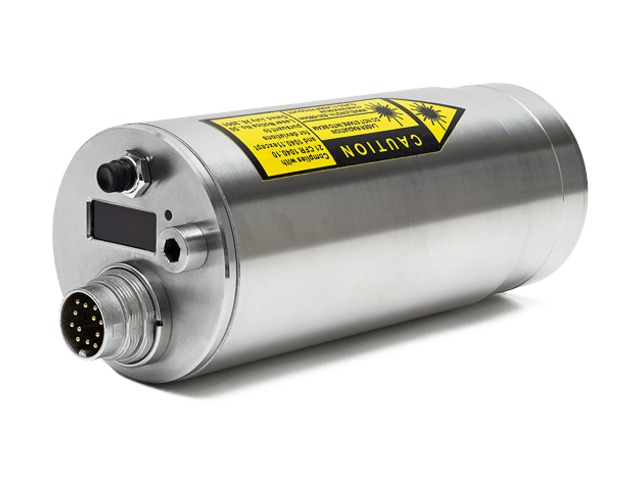

The pyrometer IS 6 Advanced is a digital, compact, and fast infrared measuring instrument for non-contact temperature measurement on metals, ceramics, or graphite.

For a precise alignment of the pyrometer to the measuring object, the instrument is optionally equipped with a laser targeting light or a view finder.

The pyrometer can be connected to a PC through an RS485 to USB connection, enabling you to make parameter adjustments using the InfraWin software. The software can be used for temperature indication, data logging, and further analyzing of complete temperature processes.

Technical features

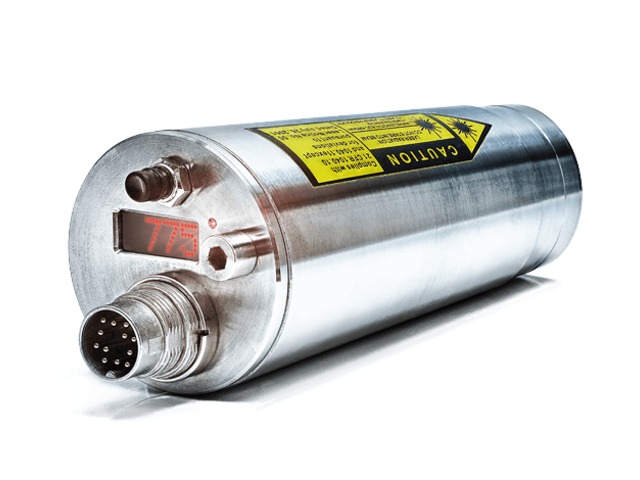

Sub Range : Any range adjustable within the temperature range, minimum span 50 °C Spectral Ranges : IS: 0.7 to 1.1 μm Resolution : 0.1 °C or 0.2 °F at interface; < 0.0015% of adjusted temperature range at analog output, 16 bit; 1 °C or 1 °F on display Emissivity ε : 0.050 to 1.000 in steps of 1/1000 Transmittance τ : 0.050 to 1.000 in steps of 1/1000 Response Time t90 : 120 μs; adjustable to min; 1 ms; 3 ms; 5 ms; 10 ms; 50 ms; 250 ms; 1 s; 3 s; 10 s Measurement Uncertainty : (ε = 1, t90 = 1 s, TAmb = 25 °C) 300...1500 °C: 0.3% of reading in °C + 2 °C > 1500 °C: 0.6% of reading in °C Repeatability : (ε = 1, t90 = 1 s, TAmb = 25 °C) > 300 °C: 0.15% of reading in °C + 1 °C Connection : 12-pin connector Display (in rear cover) : LED, 4 digit matrix, 5 mm high temperature signal or measuring distance

Download the complete technical features
