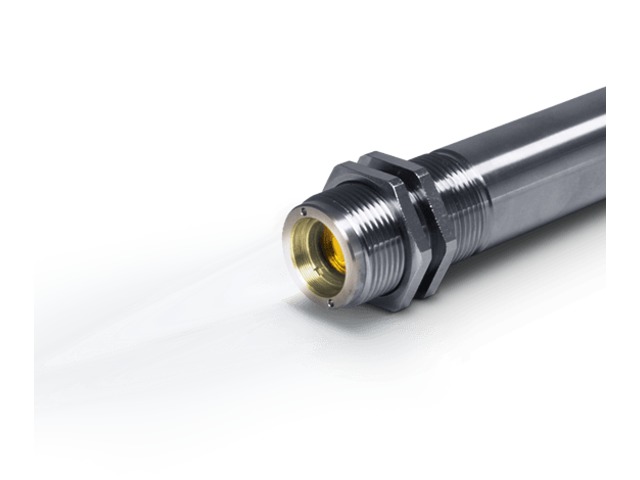

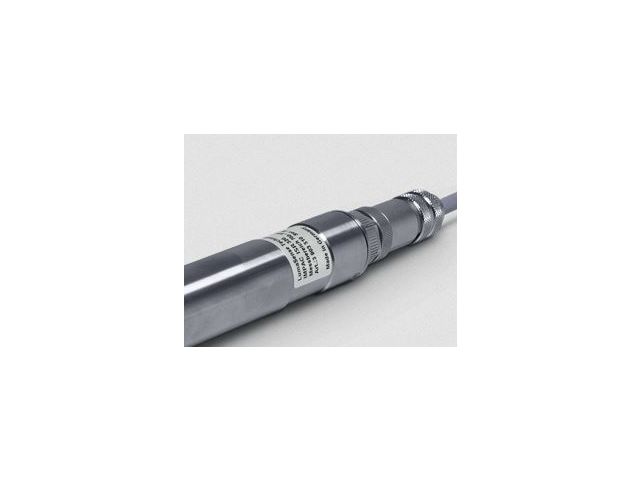

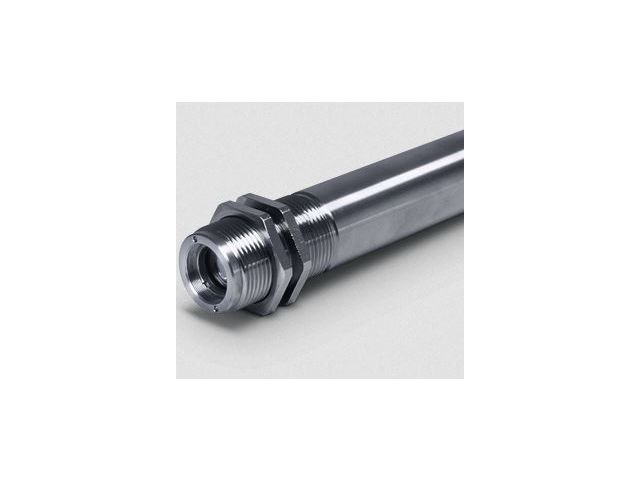

IMPAC Pyrometer IGA 320

Pyrometers

Ask for a quote

Presentation

Small, short wavelength digital infrared thermometer for non-contact temperature measurement of metallic surfaces, graphite or ceramics between 300 and 1800 °C.

The IMPAC IGA 320 is a short wavelength infrared measuring instrument with internal digital signal processing. It is used for measurements of metallic surfaces, graphite and ceramics, etc.

The very small housing dimensions enable the integration of the pyrometer into compact production machines and the solid and robust design guarantees reliability even in harsh industrial environments.

The instruments are equipped with a choice of optics for small spot sizes. The LED targeting light enables precise alignment on the measurement object. It is automatically active and can be used during measurement.

In additional to the analog output the pyrometer is equipped with a digital RS485 interface, which enables secure data transmission to a PC or a PLC, over long distances.

The included InfraWin software enables the graphical display and storage of measurement values; plus easy-set up of all instrument parameters.

Technical features

Small housing dimensions for easy installation in confined spaces RS485 interface for connection to a PC in long transmission networks Analog output adjustable to 0 or 4 to 20 mA for connection to standard analyzing instruments Internal digital signal processing for high accuracy and long temperature ranges High quality optics for measurement of small objects Built-in LED targeting light for easy alignment to the measuring object

Download the complete technical features
