IMPAC Pyrometer IGA 6/23 Advanced

Pyrometers

Ask for a quote

Presentation

Stationary, digital pyrometer for non-contact temperature measurement in ranges between 50 and 1800 °C.

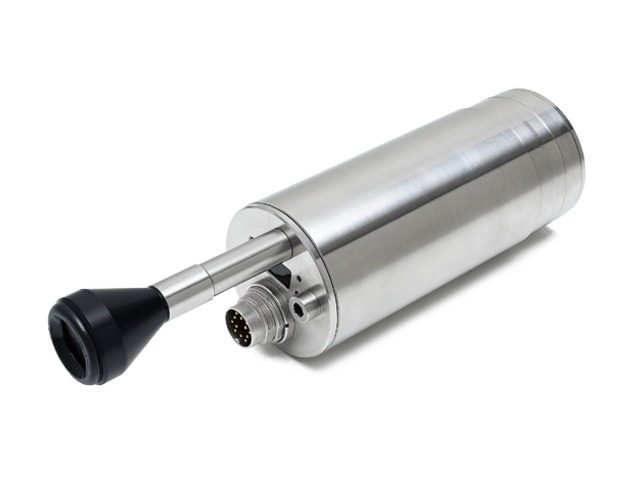

The pyrometer IGA 6/23 Advanced is a digital, compact, and fast infrared measuring instruments for non-contact temperature measurement on metals, ceramics, or graphite.

For optimal match to the application, the instrument is equipped with a high-end optics with manual focus. The fast response time of only 0.5 ms facilitates the measurement of fast and dynamic processes or short temperature peaks.

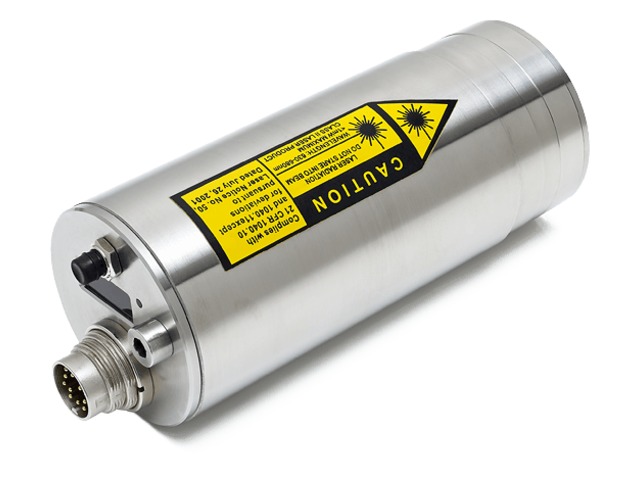

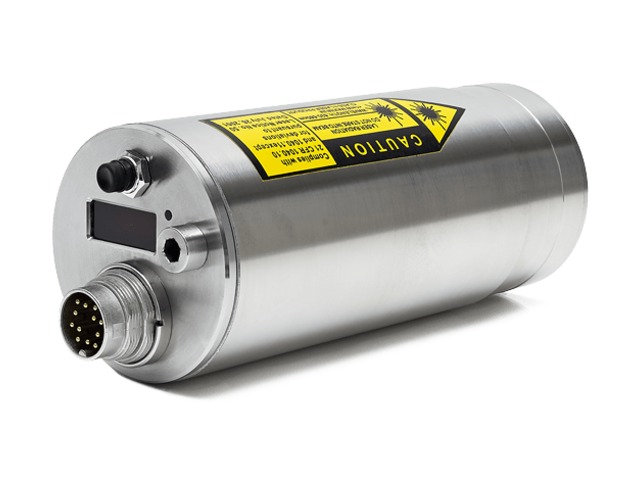

The integrated 4 digit LED display indicates the current measuring temperature or the currently set measuring distance. For a precise alignment of the pyrometers to the measuring object, the instruments are optionally equipped with a laser targeting light or a view finder.

The pyrometers can be connected to a PC through an RS485 to USB connection, enabling you to make parameter adjustments using the InfraWin software. The software can be used for temperature indication, data logging, and further analyzing of complete temperature processes.

Technical features

Sub Range : Any range adjustable within the temperature range, minimum span 50 °C Spectral Ranges : 2 to 2.6 μm (main wavelength 2.3 μm) Resolution : 0.1 °C or 0.2 °F at interface; < 0.0015% of adjusted temperature range at analog output, 16 bit; 1 °C or 1 °F on display Emissivity ε : 0.050 to 1.000 in steps of 1/1000 Transmittance τ : 0.050 to 1.000 in steps of 1/1000 Optics : Manually focusable from rear cover measuring distance a = 210 to 5000 mm Protection Class : IP 65 IEC 60529 (value in mated condition) Ambient Temperature : 0 to 70 °C at housing Housing : Stainless steel Power Consumption : Max. 3 W ( incl. laser)

Download the complete technical features
