Presentation

Flexible buscable with PVC outer sheath, for use in different bussystems

For bus systems like e.g. Modbus, SUCOnet, Modulink, VariNet. Flame retardant, UL- approval, Core indet. code DIN 47100. Temperature range from -40°C bis +80°C

LD is a LAPP abbreviation for long distance

Benefits

Suitable for multiple Bus systems based on RS485 / RS422

Application range

For fixed installation
Maximum electromagnetic screening
Bus cables for bus systems such as e.g. Modbus, SUCOnet P, Modulink P, VariNet-P)
Dry or damp rooms

Product features

The stated bit rates result in the following cable lengths (maximum) of one bus segment:
9.6-93.75 kbit/s = 1200m
187.5 kbit/s = max. 1,000 m
500 kbit/s = max. 400 m

Norm references / Approvals

UNITRONIC® BUS LD A:
UL versions with certification:
UL/CSA type CMX acc. to UL 444
and CSA C22.2 no. 214-02
Flame retardant acc. to IEC 60332-1-2

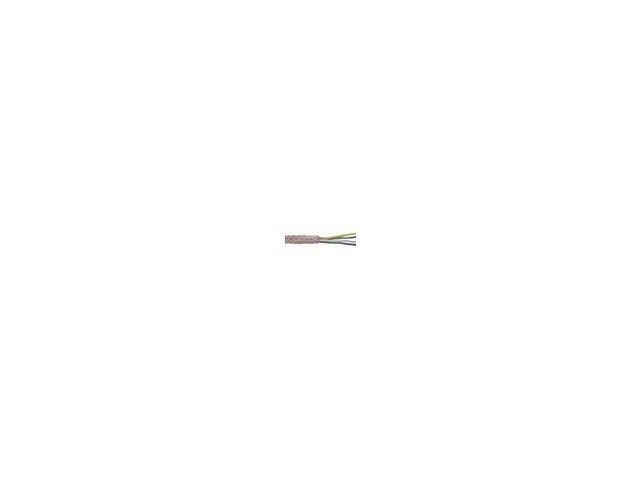

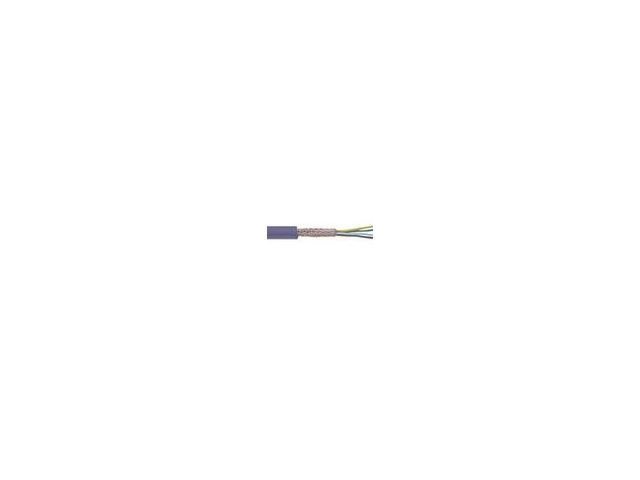

Product Make-up

Stranded conductor, bare, 7-wire
Core insulation: PE
Colour code DIN 47100
Overall screening of braided tinned-copper strands

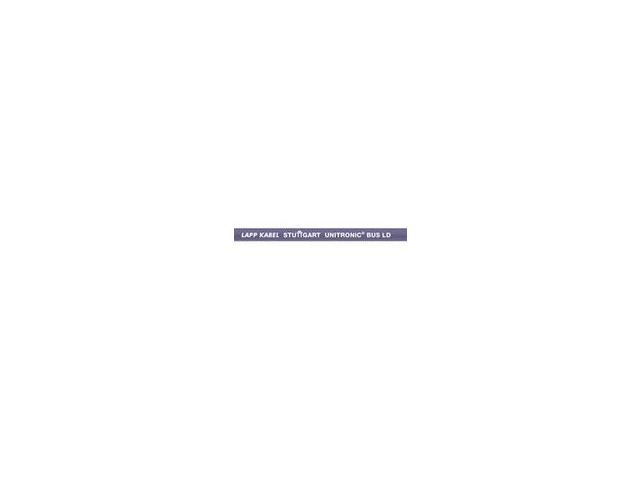

Outer sheath: PVC, violet (RAL 4001)
