LAPP FRANCE

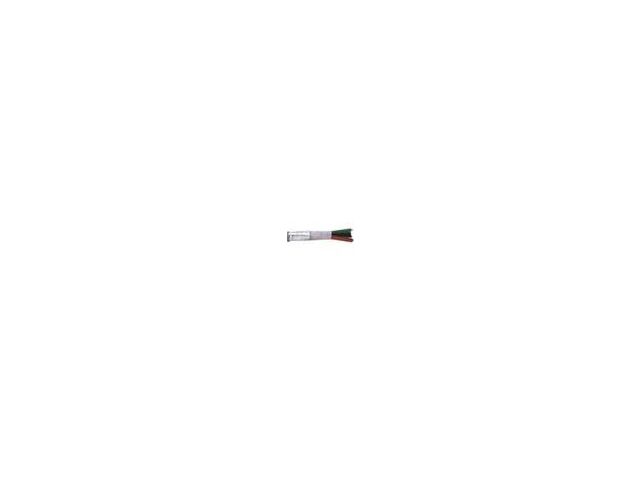

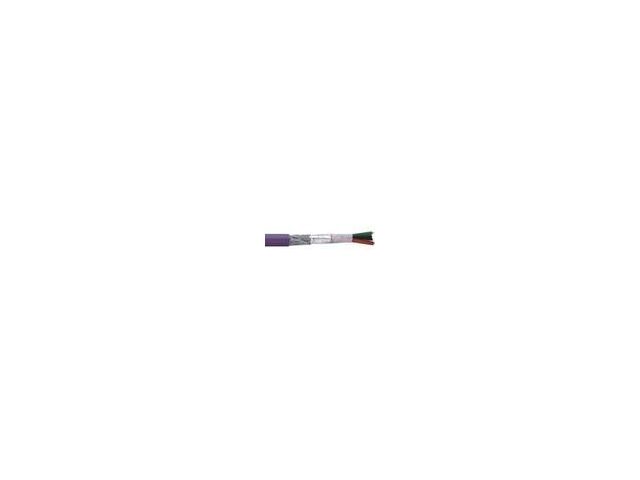

Bus cable for PROFIBUS-DP, -FMS and FIP | UNITRONIC BUS PB 105 1X2X0,64

Fieldbus

• Material: flexible PVC quality 9732 • Operating temperature: -20 to +90°C • Hardness Shore A: 80 ± 5 • Tensile strength at break: 18 MPa • Ultimate elongation: 250 % • Dielectric strength: > 20...

Ask for a quote Receive Documentation Contact the supplier

PROFIBUS cable with an extended temperature range up to +105°C

Bus cable for PROFIBUS-DP, -FMS and FIP. No additional cable protection against high temp. Flame retardant and oil resistant. Temp. range -30°C bis +105°C.

Application range
  • Cable has been designed for use in factory halls where temperatures up to max. 105°C may occur.
Product features
  • High temperature resistance
  • Flame-retardant according IEC 60332-1-2
  • Oil-resistant
Product Make-up
  • Stranded conductor, 7-wire, bare
  • Conductor diameter: 0,64 mm (AWG24)
  • Core insulation: PP
  • Overall screening with copper braid and plastic-laminated aluminium foil
  • Outer sheath: PVC, violet (RAL 4001)
