Communication at sensor/actuator level. Halogen free (rubber), UL-approval (PVC), oil resistant (TPE). Temperature range from -40°C bis +90°C.
Benefits
-
The new BUS ASI LD 2 x 2.5 (Long Distance) allows even modules located further away to be connected.
AS-I power supplies can be reduced. The BUS ASI LD is downwards-compatible with version 1.5.
-
The rubber versions are halogen-free
Application range
-
Communication at sensor/actuator level
-
Sensor-/actuator wiring
-
For fixed installation as well as occasional flexing at free, non-continuously recurring movement without tensile load
-
The TPE version has an oil-resistant outer sheath. It is suitable for wet areas, in particular in conjunction with water-soluble cooling lubricants.
Product features
-

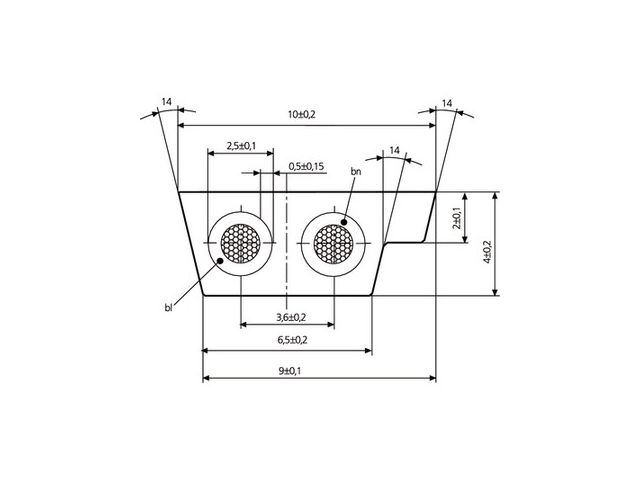

Data and power are transmitted via an unscreened, geometrically coded two-core flat cable (protection against polarity reversal).
-
The conductor is contacted by "piercing technology" within the ASI modules.
-
The sensors are connected to the ASI modules (coupling modules) using round cables (connection cables).
Norm references / Approvals
-
ASI is standardised Europe-wide in EN 50295 and internationally in IEC 62026-2.
-
PVC A version with UL/CSA (CMX) certification
-
UL/CSA version: CMG c(UL)us or (UL)CL2 or AWM 300V FT4 certified
Product Make-up
-
Conductor: fine-wire tinned-copper strands
-
Core insulation: blue and brown
-
Outer sheath:
rubber (G), halogenfree
thermoplastic elastomers (TPE)
PVC
-

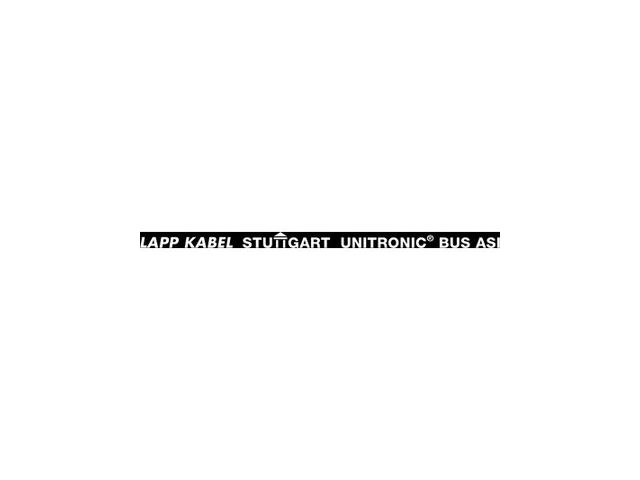

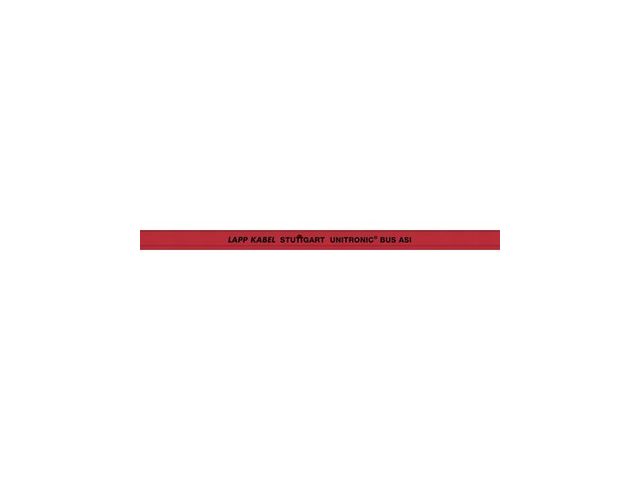

Outer sheath: yellow (RAL 1023), black (RAL 9005), red (RAL 3000)
